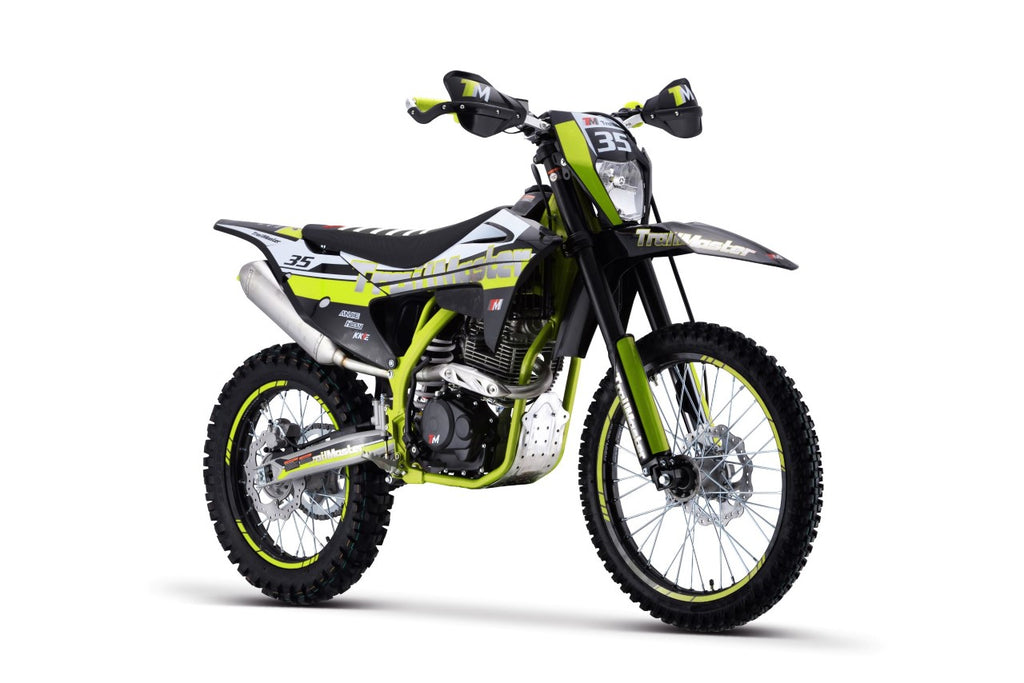

Trailmaster TM35 250cc, 5 Speed Manual, LED Head Light, 21" front tire, 36 inch seat height, electric start Trailmaster The all-new TM35 250cc Dirt bike is the newest exciting off-road product from one of the industry's largest and most innovative companies. This all-new 250cc full-size dirt bike is the most powerful bike in the class. The larger frame and the taller seat make this a perfect fit for the big guys in the house.  There is not another bike in this category that comes close.   All Aluminum rims and handlebars save weight.  The TrailMaster dirt bike offers a superior frame design, improved suspension, and the industry's longest 6 months/6,000 miles warranty on the engine and transmission.  The transmission features a Wet Multi-Plate, Constant-mesh, and 5-speed.  The suspension features inverted front forks and 245mm of adjustment.  This all-new TM35 dirt bike brings together design features found on bikes that cost five times as much.   This is a true dirt bike from TM.  Longer frames, a 21-inch front tire, and extended suspensions give the bike more suspension for the ruts and rougher terrain than pit bikes do not handle very well. This is a full-size dirt bike made for trail riding, off-roading, or just cruising.  Featuring twin spar frames hexagon lightweight frame and front and rear, and vented 240mm disc brakes.  The mono-shock rear end and dual inverted front forks give these small bikes full suspension.  The welded steel frame and twin-spar motor mounts give this bike a great balance and power-to-weight ratio. Easy-to-access motor mounts allow quick access for maintenance.  Electric start is a feature that is usually only available in larger much more expensive bikes.  Only the highest quality engine components are used in the air-cooled engine.   Trailmaster has a proven track record of over two decades of providing outstanding service to all of our customers.  The engineers at Trailamster have been working on these bikes for three years to get them to the market. They are here are they were worth the wait.  TM60 150cc 19-inch front tire, kick start, 34-inch seat height, LED head Light TM31 228cc 19-inch front tire Kick Start, 34-inch seat height  TM33 228cc 21inch front tire, 37-inch seat height, electric start TM35 250cc, 21-inch front tire, 37-inch seat height, LED headlight, Electric start TM36 300cc 21-inch front tire, 37-inch seat height, LED Headlight, electric start TM38 300cc, Japanese Carb, 37-inch seat Height, 6 speed  TECH SPECS POWER SYSTEM Engine Type ZS-CB250F, Single Cylinder, 4-Stroke, Air Cooling Displacement 249.9 ml Max Power 14/8500 kw/r/min Max Torque 18/6500 N.m/r/min Compression Ratio 9.25:1 Shift Type Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears Bore and Stroke 72 x 61.4 mm Min.Fuel Consumption ≤354(g/Kw.h) Start Type Electric & Kick Start Carburetor PE28 (EPA) Ignition Digital CDI Engine Oil #: SJ-10W/40 Transmission #520 & 112L Chain, FT: 13T/RR: 47T Sprocket PERFORMANCE Front Suspension Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel Rear Shock Φ12*450mm Spring Pre-load None-Adjustable Shock Front Wheel Aluminum Rim-WT  , DCA Hub, FT: 1.6 x 21 Rear Wheel Aluminum Rim-WT, DCA Hub, RR: 2.15 x 18 Front Tires 80/100-21 Rear Tires 110/100-18 Front Brake Dual Piston Caliper, 240mm Disc Rear Brake Single Piston Caliper, 240mm Disc Seat Ribbed TrailMaster Seat HeadLight LED Fairings GS style New Fairings Handguard Aluminum Bracket Version DETAILS Frame Lightweight ,Steel Hexagon Tube Frame Swing-Arm Tube High Strength Steel Swingarm; L=560mm Handle Bar Tapered Aluminum  #6061 Overall Size 80.3"x32.1"x48.4"(2040x815x1230 mm) Packing Size 67.8"x17.7"x34.3"(1720x450x870mm) Wheel Base 1345 mm/53 inch Seat Height 920 mm/ 36.2 inch Ground Clearance 310 mm/12.2 inch Fuel Capacity 6.5L/1.72G N.W 114KG/251 lbs G.W 132KG/291 lbs   WARRANTY THE MANUFACTURERS WARRANTY COVERS PARTS, ENGINE ONLY FOR ALL PRODUCTS AS FOLLOWS:OFF ROAD: ATV'S, UTV'S, BUGGIES, GO CARTS AND DIRT BIKES offer 3 MONTHS PARTS, 6 MONTHS ENGINE WARRANTY, MOTOBUYS.com will supply new or rebuilt replacement parts in exchange for defective parts for a period of 3(three) months, as well defective engines for a period of 6(six) months from the date of purchase at no charge.Buyers will need basic repair & basic setup skills such as using tools; replacing nuts & bolts, filters, light bulbs, fluids, adjustments, etc. If you don’t have this ability we suggest using a mechanic to assist you with your needs. Our tech support Hotline is available to assist you.THIS LIMITED WARRANTY COVERS THE FOLLOWING PARTS ONLY:ENGINE: All internal lubricated parts, i.e. Pistons, piston rings, piston pins, connecting rods, rod bearings, camshaft, camshaft bearings, timing chain, crankshaft, crankshaft main bearings, oil pump, water pump, valves, valve springs, valve guides, valve seats, valve lifters and valve push rods. Additionally, the engine head and cylinder will only be covered if damage is caused solely as a result of the mechanical failure of one or more internal lubricated components listed above. (Broken gears any damage from outside impacted is not covered warranty)ENGINE CASE: The Engine case itself will only be covered if the damage caused was solely as a result of the mechanical failure of one or more of the internal lubricated components listed above. (Broken gears any damage from outside impact is not covered warranty)DRIVE SYSTEM: All internal lubricated parts contained within the drive axle housing case, i.e. differential, differential gears, drive shaft, drive axles, CV joints, axle bearings, reverse gears and output shafts. The drive axle housing as well as the reverse gearbox housing, if damaged solely as a result of the mechanical failure of one or more or the internal lubricated components contained the drive axle housing will be covered. (Any bent, broken, or damage by outside impact is not covered warranty)FUEL SYSTEM: For carbureted vehicles; Carburetor, vacuum fuel pump, intake manifold, fuel tank and fuel petcock. For fuel injected vehicles; Fuel injectors, fuel pump, fuel rail and fuel pressure regulator.ELECTRICAL: Stator, stator pickup, magneto, voltage regulator\ rectifier, CDI, starter relay\ starter solenoid, starter motor, coil, distributor assembly and injector relay.COOLING SYSTEM: Radiator, radiator cap, thermostat, thermostat housing, temperature indicator switch, cooling fan motors; water pump and water pump housing.BRAKES: Calipers, drum housings, drum brake linkage, reservoirs, rotors, and lines.CHASSIS: Frame, swing arms, A-arms, steering controls, (if not caused by jumping or impact.)TRANSMISSION (Automatic or Standard): All internal lubricated parts contained within the transmission case, i.e. flywheel, hydraulic shift linkage, kick start spindle, kick start secondary gear and transmission gears. The transmission case itself will be covered if the damage was solely as a result of mechanical failure of one or more of the internal lubricated components contained within the transmission case. (Improper shifting of gears by not coming to stop complete can cause damage to internal gears. ("This cause is not covered warranty")WHAT IS NOT COVERED: The following is a list of items not covered by the warranty policy. This list is not all inclusive and may be modified at any time. Batteries, Belts, Brakes and Brake Pads, Chains, Clutch, Foot peg mount, Hand Levers, Hoses, Lights, Mirrors, Plastic Body, Seats, Shocks, Spark Plugs, Tires, Transmission.COVERAGE AND LIMITATIONS: Initial assembly and preparation must be preformed in accordance with the Consumer Motor Vehicle Delivery Preparation and Inspection Form that is provided by the manufacturer. Additionally, all work must be performed by a professional mechanic (i.e. engine repair shop, motorcycle shop, or local auto repair shop) or an authorized Dealer of the manufacturer to assure your vehicle is in good working condition. Upon completion, you must mail in the Consumer Motor Vehicle Delivery Preparation and Inspection Form signed by the technician that performed the service. You will need to provide proof of this service when filing a warranty claim, so (end user) must keep your receipts. Subject to the limitations stated in this agreement,MOTOBUYS.com agrees (at its sole discretion) to replace a covered component if the covered component fails as a result of one or more of the internal lubricated parts within the component stated warranty period from the date of purchase, while the component has been used under the conditions and in the manner specified by its original manufacturer. Keep in mind these off-road units are built for recreational use only. Your claim may be denied under the following circumstances:Misuse or abuse of the vehicle, i.e.JumpingStunt ridingModification of any kindRacingRiding at constant wide open throttle (over revving the engine)Unit is used as a rentalDamage is caused by an accidentProduct is used in a manner that it is not designed forRider abuseImproper adjustment\operation of the clutch, i.e. dragging, causing premature burning of thefriction platesImproper adjustment\operation of brakes. Driving with parking brake on.Improper gear engagement, i.e. engaging reverse will moving forwardImproper maintenances, i.e.Lack of routine maintenanceRepairs performed improperly,Use of incorrect lubricantsImproper initial set upUse of aftermarket parts for repairThe following items are not covered: Tires, rims, body panels, fuses, forks, shocks, gaskets, light bulbs, seats, CV Boots, oil filter, air filter, fuel filter, filters, clutch wear parts, cables, drive belt, chain, spark plug, any part made from rubber, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts and fasteners.HANDLING OF WARRANTY CLAIMS:FOR PARTS: All Parts warranty issues must be processed through https://motobuys.com/pages/part-request  or if directed by the manufacturer. You must produce a copy of your original invoice showing the model number, vehicle identification number and date of purchase on the invoice, as well as a copy of your Consumer Motor Vehicle Delivery Preparation and Inspection Form to warranty your product directly. All defective parts must be returned to MOTOBUYS.com or the manufacturer as directed for inspection and verification of defect. MOTOBUYS.com reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.FOR ENGINES: All Engine warranty issues must be processed through MOTOBUYS.com or if directed through the manufacturer of the unit purchased. In ether case, after obtaining an RMA number from MOTOBUYS.com, you will be provided with a return shipping label. The motor must be removed from the vehicle, safely packaged and shipped to our repair facility located at the address listed on the shipping label. MOTOBUYS.com or the manufacturer reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty

Trailmaster TM35 250cc, 5 Speed Manual, LED Head Light, 21" front tire, 36 inch seat height, electric start

$2,299.00
Free Standard Shipping*
In Stock

*except large items requiring special delivery.

The all-new TM35 250cc Dirt bike is the newest exciting off-road product from one of the industry's largest and most innovative companies. This all-new 250cc full-size dirt bike is the most powerful bike in the class. The larger frame and the taller seat make this a perfect fit for the big guys in the house.

There is not another bike in this category that comes close.

All Aluminum rims and handlebars save weight.

The TrailMaster dirt bike offers a superior frame design, improved suspension, and the industry's longest 6 months/6,000 miles warranty on the engine and transmission.

The transmission features a Wet Multi-Plate, Constant-mesh, and 5-speed.

The suspension features inverted front forks and 245mm of adjustment.

This all-new TM35 dirt bike brings together design features found on bikes that cost five times as much.   This is a true dirt bike from TM.  Longer frames, a 21-inch front tire, and extended suspensions give the bike more suspension for the ruts and rougher terrain than pit bikes do not handle very well.

This is a full-size dirt bike made for trail riding, off-roading, or just cruising.

Featuring twin spar frames hexagon lightweight frame and front and rear, and vented 240mm disc brakes.  The mono-shock rear end and dual inverted front forks give these small bikes full suspension.  The welded steel frame and twin-spar motor mounts give this bike a great balance and power-to-weight ratio. Easy-to-access motor mounts allow quick access for maintenance.

Electric start is a feature that is usually only available in larger much more expensive bikes.  Only the highest quality engine components are used in the air-cooled engine.

Trailmaster has a proven track record of over two decades of providing outstanding service to all of our customers.  The engineers at Trailamster have been working on these bikes for three years to get them to the market. They are here are they were worth the wait.

TM60 150cc 19-inch front tire, kick start, 34-inch seat height, LED head Light

TM31 228cc 19-inch front tire Kick Start, 34-inch seat height

TM33 228cc 21inch front tire, 37-inch seat height, electric start

TM35 250cc, 21-inch front tire, 37-inch seat height, LED headlight, Electric start

TM36 300cc 21-inch front tire, 37-inch seat height, LED Headlight, electric start

TM38 300cc, Japanese Carb, 37-inch seat Height, 6 speed

TECH SPECS

POWER SYSTEM

Engine Type

ZS-CB250F, Single Cylinder, 4-Stroke, Air Cooling

Displacement

249.9 ml

Max Power

14/8500 kw/r/min

Max Torque

18/6500 N.m/r/min

Compression Ratio

9.25:1

Shift Type

Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears

Bore and Stroke

72 x 61.4 mm

Min.Fuel Consumption

354(g/Kw.h)

Start Type

Electric & Kick Start

Carburetor

PE28 (EPA)

Ignition

Digital CDI

Engine Oil #

SJ-10W/40

Transmission

#520 & 112L Chain, FT: 13T/RR: 47T Sprocket

PERFORMANCE

Front Suspension

Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel

Rear Shock

Φ12*450mm Spring Pre-load None-Adjustable Shock

Front Wheel

Aluminum Rim-WT  , DCA Hub, FT: 1.6 x 21

Rear Wheel

Aluminum Rim-WT, DCA Hub, RR: 2.15 x 18

Front Tires

80/100-21

Rear Tires

110/100-18

Front Brake

Dual Piston Caliper, 240mm Disc

Rear Brake

Single Piston Caliper, 240mm Disc

Seat

Ribbed TrailMaster Seat

HeadLight

LED

Fairings

GS style New Fairings

Handguard

Aluminum Bracket Version

DETAILS

Frame

Lightweight ,Steel Hexagon Tube Frame

Swing-Arm

Tube High Strength Steel Swingarm; L=560mm

Handle Bar

Tapered Aluminum  #6061

Overall Size

80.3"x32.1"x48.4"(2040x815x1230 mm)

Packing Size

67.8"x17.7"x34.3"(1720x450x870mm)

Wheel Base

1345 mm/53 inch

Seat Height

920 mm/ 36.2 inch

Ground Clearance

310 mm/12.2 inch

Fuel Capacity

6.5L/1.72G

N.W

114KG/251 lbs

G.W

132KG/291 lbs

The all-new TM35 250cc Dirt bike is the newest exciting off-road product from one of the industry's largest and most innovative companies. This all-new 250cc full-size dirt bike is the most powerful bike in the class. The larger frame and the taller seat make this a perfect fit for the big guys in the house.

There is not another bike in this category that comes close.

All Aluminum rims and handlebars save weight.

The TrailMaster dirt bike offers a superior frame design, improved suspension, and the industry's longest 6 months/6,000 miles warranty on the engine and transmission.

The transmission features a Wet Multi-Plate, Constant-mesh, and 5-speed.

The suspension features inverted front forks and 245mm of adjustment.

This all-new TM35 dirt bike brings together design features found on bikes that cost five times as much.   This is a true dirt bike from TM.  Longer frames, a 21-inch front tire, and extended suspensions give the bike more suspension for the ruts and rougher terrain than pit bikes do not handle very well.

This is a full-size dirt bike made for trail riding, off-roading, or just cruising.

Featuring twin spar frames hexagon lightweight frame and front and rear, and vented 240mm disc brakes.  The mono-shock rear end and dual inverted front forks give these small bikes full suspension.  The welded steel frame and twin-spar motor mounts give this bike a great balance and power-to-weight ratio. Easy-to-access motor mounts allow quick access for maintenance.

Electric start is a feature that is usually only available in larger much more expensive bikes.  Only the highest quality engine components are used in the air-cooled engine.

Trailmaster has a proven track record of over two decades of providing outstanding service to all of our customers.  The engineers at Trailamster have been working on these bikes for three years to get them to the market. They are here are they were worth the wait.

TM60 150cc 19-inch front tire, kick start, 34-inch seat height, LED head Light

TM31 228cc 19-inch front tire Kick Start, 34-inch seat height

TM33 228cc 21inch front tire, 37-inch seat height, electric start

TM35 250cc, 21-inch front tire, 37-inch seat height, LED headlight, Electric start

TM36 300cc 21-inch front tire, 37-inch seat height, LED Headlight, electric start

TM38 300cc, Japanese Carb, 37-inch seat Height, 6 speed

POWER SYSTEM

Engine Type

ZS-CB250F, Single Cylinder, 4-Stroke, Air Cooling

Displacement

249.9 ml

Max Power

14/8500 kw/r/min

Max Torque

18/6500 N.m/r/min

Compression Ratio

9.25:1

Shift Type

Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears

Bore and Stroke

72 x 61.4 mm

Min.Fuel Consumption

354(g/Kw.h)

Start Type

Electric & Kick Start

Carburetor

PE28 (EPA)

Ignition

Digital CDI

Engine Oil #

SJ-10W/40

Transmission

#520 & 112L Chain, FT: 13T/RR: 47T Sprocket

PERFORMANCE

Front Suspension

Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel

Rear Shock

Φ12*450mm Spring Pre-load None-Adjustable Shock

Front Wheel

Aluminum Rim-WT  , DCA Hub, FT: 1.6 x 21

Rear Wheel

Aluminum Rim-WT, DCA Hub, RR: 2.15 x 18

Front Tires

80/100-21

Rear Tires

110/100-18

Front Brake

Dual Piston Caliper, 240mm Disc

Rear Brake

Single Piston Caliper, 240mm Disc

Seat

Ribbed TrailMaster Seat

HeadLight

LED

Fairings

GS style New Fairings

Handguard

Aluminum Bracket Version

DETAILS

Frame

Lightweight ,Steel Hexagon Tube Frame

Swing-Arm

Tube High Strength Steel Swingarm; L=560mm

Handle Bar

Tapered Aluminum  #6061

Overall Size

80.3"x32.1"x48.4"(2040x815x1230 mm)

Packing Size

67.8"x17.7"x34.3"(1720x450x870mm)

Wheel Base

1345 mm/53 inch

Seat Height

920 mm/ 36.2 inch

Ground Clearance

310 mm/12.2 inch

Fuel Capacity

6.5L/1.72G

N.W

114KG/251 lbs

G.W

132KG/291 lbs
