TrailMaster T5, 5 Speed Manual Trans, 223cc Engine, Digital dashboard, 21 inch front tire, 35 inch seat height Trailmaster trailmaster is excited to introduce the all-new T5.  The latest addition to the growing family of dirt bikes from Trailmaster offered upgrades and performance in a great looking new frame.  Equipped with adjustable inverted front forks, electric and kick start all wrapped up in a light weight all steel twin-spar style frame.  The Zongshen engine is paired to a 5 speed manual transmission with top speed of up to 60 mph—outstanding ground clearance thanks to teh 21 inch front tire and the 19 inch rear tire.  The rear suspension os equipped with an airbag-style shock.  Aluminum rims help keep the weight down for a better power-to-weight ratio than its competitors. This dirt bike is equipped with a digital dashboard for quck information, and an LED headlight for after hours cruising.  Blinkers, brake lights, side view mirrors, and license plate holders make this bike street legal in many states.   EPA Approved. Legal in most of the states, Not for CA, NY, PA, VA, NJ, FL, LA. LEGAL FOR STREET & OFFROAD USE!  Check with your local regulatory agency for additional details on street use.    TECH SPEC Engine System Engine Type    Zongshen CB250D-G,Single cylinder, four-stroke Displacement (ML) 223cc Max Power(Kw/r/min)  12.00/7000(1±1.5%) Max Torque(N.m/r/min)  17.50/5500(1±1.5%) Max. Load Capacity (kg)    150 Max. Speed 57 M/H Compression Ratio    9.6:1 Shift Type   International five gears Start Type   Electric / Kick Start Ignition   CDI Min. Fuel Consumpetion:   ≤354(g/(kW·h) Minimum turning radius :   2600mm Lubricant Type #:  SF 15W/40 Chain:   520 CHOCHO Transmission:   Chain Drive  Size Data Overall Size (L x W x H)   2100mm*810mm*1180mm / 82.74 * 31.91* 46.49 Inch Wheel Base   1400 mm / 55.16 Inch Seat Height   890 mm / 35.07 Inch Ground Clearance   290 mm / 11.43 Inch Fuel Capacity   2 Gal/9L Rims  Aluminium   Hubs Aluminium   Tires   YUANXING FT: 80/100-21 - RR: 110/100-18 Frame/Suspension/Brake system Frame   High quality Steel Frame Front Fork   Inverted front shock absorber, 48/51-800mm Rear Shock   Built-in airbag rear shock absorber Upper and Lower Connecting Board   Aluminium alloy Handle bar   Aluminium alloy Reducing Handle Bar Front Brake   Disc 252mm Rear Brake  Disc 220mm Exhaust   Stainless Steel Packing and Loading Packing Size   70.92*18.12*34.78 Inch/ 1800*460*870 mm  N.W/LBS   118.00 KGS / 259.6 LBS G.W/LBS   140.00 KGS / 308.00 LBS   *It will be up to local DMV to decide whether it will be able to registered on road or not. EPA Approved Legal in most of the states, Not for CA, NY, PA, VA, NJ, FL, LA. LEGAL FOR STREET & OFFROAD USE!   WARRANTY THE MANUFACTURERS WARRANTY COVERS PARTS, ENGINE ONLY FOR ALL PRODUCTS AS FOLLOWS:OFF ROAD: ATV'S, UTV'S, BUGGIES, GO CARTS AND DIRT BIKES offer 3 MONTHS PARTS, 6 MONTHS ENGINE WARRANTY, MOTOBUYS.com will supply new or rebuilt replacement parts in exchange for defective parts for a period of 3(three) months, as well defective engines for a period of 6(six) months from the date of purchase at no charge.Buyers will need basic repair & basic setup skills such as using tools; replacing nuts & bolts, filters, light bulbs, fluids, adjustments, etc. If you don’t have this ability we suggest using a mechanic to assist you with your needs. Our tech support Hotline is available to assist you.THIS LIMITED WARRANTY COVERS THE FOLLOWING PARTS ONLY:ENGINE: All internal lubricated parts, i.e. Pistons, piston rings, piston pins, connecting rods, rod bearings, camshaft, camshaft bearings, timing chain, crankshaft, crankshaft main bearings, oil pump, water pump, valves, valve springs, valve guides, valve seats, valve lifters and valve push rods. Additionally, the engine head and cylinder will only be covered if damage is caused solely as a result of the mechanical failure of one or more internal lubricated components listed above. (Broken gears any damage from outside impacted is not covered warranty)ENGINE CASE: The Engine case itself will only be covered if the damage caused was solely as a result of the mechanical failure of one or more of the internal lubricated components listed above. (Broken gears any damage from outside impact is not covered warranty)DRIVE SYSTEM: All internal lubricated parts contained within the drive axle housing case, i.e. differential, differential gears, drive shaft, drive axles, CV joints, axle bearings, reverse gears and output shafts. The drive axle housing as well as the reverse gearbox housing, if damaged solely as a result of the mechanical failure of one or more or the internal lubricated components contained the drive axle housing will be covered. (Any bent, broken, or damage by outside impact is not covered warranty)FUEL SYSTEM: For carbureted vehicles; Carburetor, vacuum fuel pump, intake manifold, fuel tank and fuel petcock. For fuel injected vehicles; Fuel injectors, fuel pump, fuel rail and fuel pressure regulator.ELECTRICAL: Stator, stator pickup, magneto, voltage regulator\ rectifier, CDI, starter relay\ starter solenoid, starter motor, coil, distributor assembly and injector relay.COOLING SYSTEM: Radiator, radiator cap, thermostat, thermostat housing, temperature indicator switch, cooling fan motors; water pump and water pump housing.BRAKES: Calipers, drum housings, drum brake linkage, reservoirs, rotors, and lines.CHASSIS: Frame, swing arms, A-arms, steering controls, (if not caused by jumping or impact.)TRANSMISSION (Automatic or Standard): All internal lubricated parts contained within the transmission case, i.e. flywheel, hydraulic shift linkage, kick start spindle, kick start secondary gear and transmission gears. The transmission case itself will be covered if the damage was solely as a result of mechanical failure of one or more of the internal lubricated components contained within the transmission case. (Improper shifting of gears by not coming to stop complete can cause damage to internal gears. ("This cause is not covered warranty")WHAT IS NOT COVERED: The following is a list of items not covered by the warranty policy. This list is not all inclusive and may be modified at any time. Batteries, Belts, Brakes and Brake Pads, Chains, Clutch, Foot peg mount, Hand Levers, Hoses, Lights, Mirrors, Plastic Body, Seats, Shocks, Spark Plugs, Tires, Transmission.COVERAGE AND LIMITATIONS: Initial assembly and preparation must be preformed in accordance with the Consumer Motor Vehicle Delivery Preparation and Inspection Form that is provided by the manufacturer. Additionally, all work must be performed by a professional mechanic (i.e. engine repair shop, motorcycle shop, or local auto repair shop) or an authorized Dealer of the manufacturer to assure your vehicle is in good working condition. Upon completion, you must mail in the Consumer Motor Vehicle Delivery Preparation and Inspection Form signed by the technician that performed the service. You will need to provide proof of this service when filing a warranty claim, so (end user) must keep your receipts. Subject to the limitations stated in this agreement,MOTOBUYS.com agrees (at its sole discretion) to replace a covered component if the covered component fails as a result of one or more of the internal lubricated parts within the component stated warranty period from the date of purchase, while the component has been used under the conditions and in the manner specified by its original manufacturer. Keep in mind these off-road units are built for recreational use only. Your claim may be denied under the following circumstances:Misuse or abuse of the vehicle, i.e.JumpingStunt ridingModification of any kindRacingRiding at constant wide open throttle (over revving the engine)Unit is used as a rentalDamage is caused by an accidentProduct is used in a manner that it is not designed forRider abuseImproper adjustment\operation of the clutch, i.e. dragging, causing premature burning of thefriction platesImproper adjustment\operation of brakes. Driving with parking brake on.Improper gear engagement, i.e. engaging reverse will moving forwardImproper maintenances, i.e.Lack of routine maintenanceRepairs performed improperly,Use of incorrect lubricantsImproper initial set upUse of aftermarket parts for repairThe following items are not covered: Tires, rims, body panels, fuses, forks, shocks, gaskets, light bulbs, seats, CV Boots, oil filter, air filter, fuel filter, filters, clutch wear parts, cables, drive belt, chain, spark plug, any part made from rubber, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts and fasteners.HANDLING OF WARRANTY CLAIMS:FOR PARTS: All Parts warranty issues must be processed through https://motobuys.com/pages/part-request  or if directed by the manufacturer. You must produce a copy of your original invoice showing the model number, vehicle identification number and date of purchase on the invoice, as well as a copy of your Consumer Motor Vehicle Delivery Preparation and Inspection Form to warranty your product directly. All defective parts must be returned to MOTOBUYS.com or the manufacturer as directed for inspection and verification of defect. MOTOBUYS.com reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.FOR ENGINES: All Engine warranty issues must be processed through MOTOBUYS.com or if directed through the manufacturer of the unit purchased. In ether case, after obtaining an RMA number from MOTOBUYS.com, you will be provided with a return shipping label. The motor must be removed from the vehicle, safely packaged and shipped to our repair facility located at the address listed on the shipping label. MOTOBUYS.com or the manufacturer reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty

TrailMaster T5, 5 Speed Manual Trans, 223cc Engine, Digital dashboard, 21 inch front tire, 35 inch seat height

TrailMaster T5, 5 Speed Manual Trans,  223cc Engine, Digital dashboard, 21 inch front tire, 35 inch seat height
MSRP: $1,899.00
SAVE:$200.00
$1,699.00
Free Shipping*
In Stock
4th of July SALE - Buy More Save More

Spend $1,000, save $25 with [SAVE25]

Spend $2,000, save $50 with [SAVE50]

Spend $3,000, save $100 with [SAVE100]

Spend $5,000, save $200 with [SAVE200]

+ Free TRAILMASTER 6 month parts warranty extended (up to $199)

Buy 2 and more Trailmaster Dirt Bikes, SAVE $50 each with code BUYMOREBIKE

except TM-10/TM-11

*Some large items may require special delivery. May have shipping surcharge on remote area.

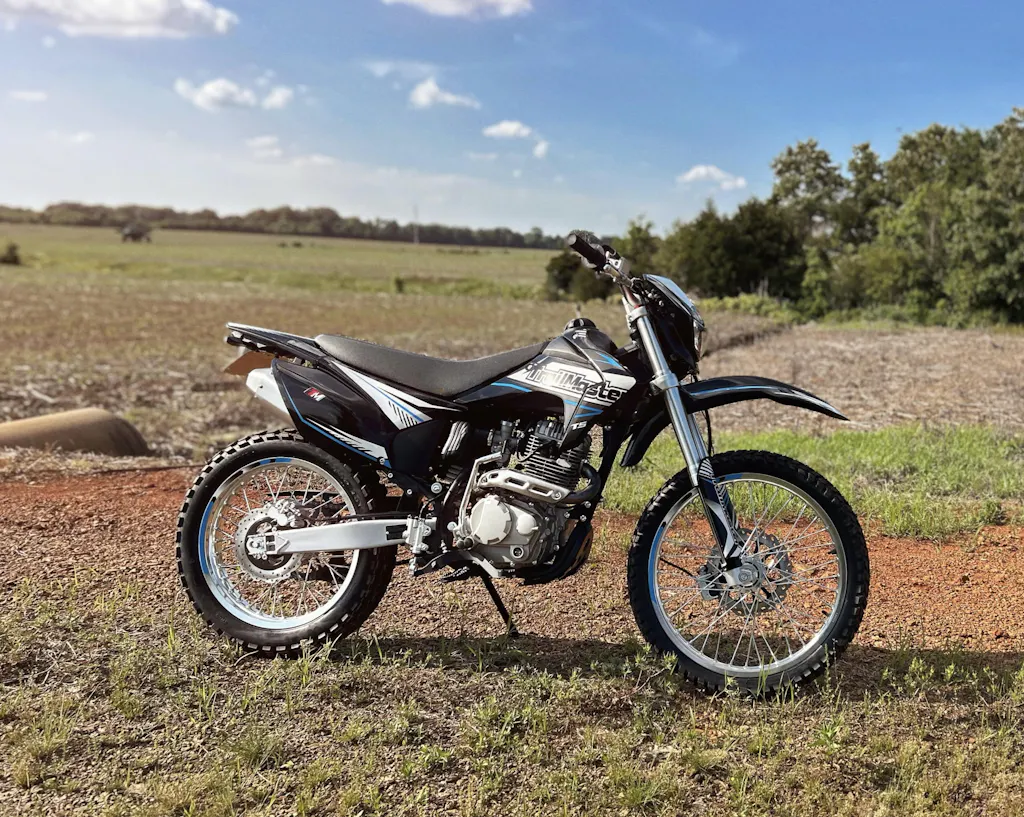

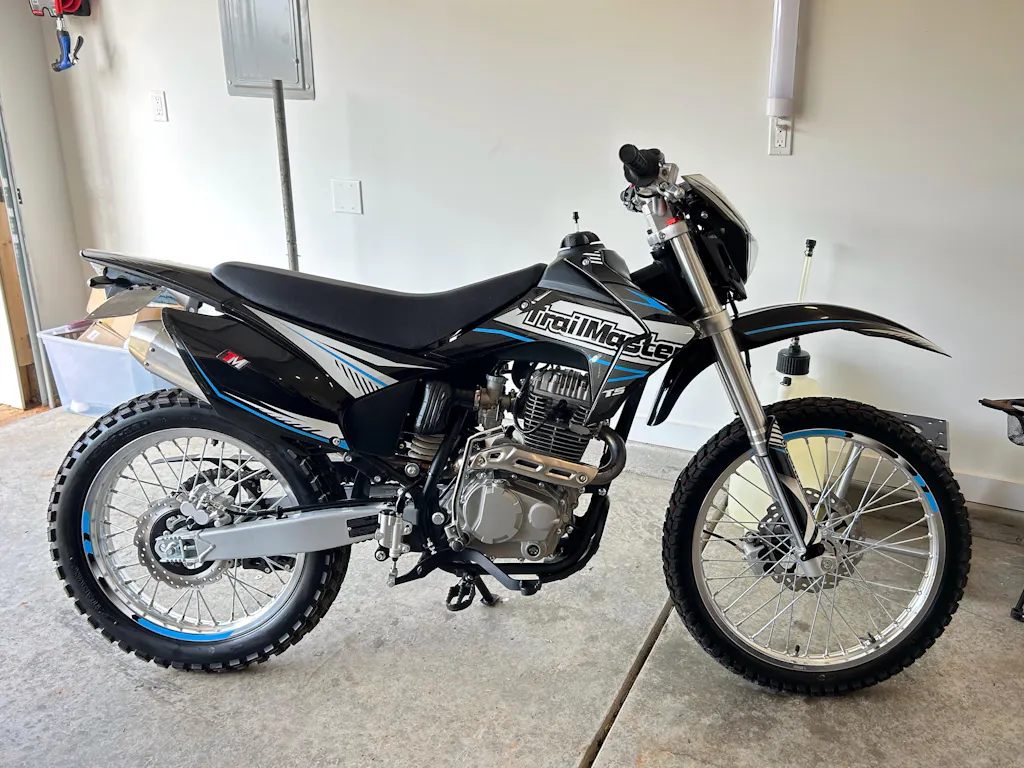

trailmaster is excited to introduce the all-new T5.  The latest addition to the growing family of dirt bikes from Trailmaster offered upgrades and performance in a great looking new frame.  Equipped with adjustable inverted front forks, electric and kick start all wrapped up in a light weight all steel twin-spar style frame.  The Zongshen engine is paired to a 5 speed manual transmission with top speed of up to 60 mph—outstanding ground clearance thanks to teh 21 inch front tire and the 19 inch rear tire.  The rear suspension os equipped with an airbag-style shock.  Aluminum rims help keep the weight down for a better power-to-weight ratio than its competitors.

This dirt bike is equipped with a digital dashboard for quck information, and an LED headlight for after hours cruising.  Blinkers, brake lights, side view mirrors, and license plate holders make this bike street legal in many states.

EPA Approved. Legal in most of the states, Not for CA, NY, PA, VA, NJ, FL, LA. LEGAL FOR STREET & OFFROAD USE!  Check with your local regulatory agency for additional details on street use.



    trailmaster is excited to introduce the all-new T5.  The latest addition to the growing family of dirt bikes from Trailmaster offered upgrades and performance in a great looking new frame.  Equipped with adjustable inverted front forks, electric and kick start all wrapped up in a light weight all steel twin-spar style frame.  The Zongshen engine is paired to a 5 speed manual transmission with top speed of up to 60 mph—outstanding ground clearance thanks to teh 21 inch front tire and the 19 inch rear tire.  The rear suspension os equipped with an airbag-style shock.  Aluminum rims help keep the weight down for a better power-to-weight ratio than its competitors.

    This dirt bike is equipped with a digital dashboard for quck information, and an LED headlight for after hours cruising.  Blinkers, brake lights, side view mirrors, and license plate holders make this bike street legal in many states.

    EPA Approved. Legal in most of the states, Not for CA, NY, PA, VA, NJ, FL, LA. LEGAL FOR STREET & OFFROAD USE!  Check with your local regulatory agency for additional details on street use.



      Engine System
      Engine Type    Zongshen CB250D-G,Single cylinder, four-stroke
      Displacement (ML) 223cc
      Max Power(Kw/r/min)  12.00/7000(1±1.5%)
      Max Torque(N.m/r/min)  17.50/5500(1±1.5%)
      Max. Load Capacity (kg)    150
      Max. Speed 57 M/H
      Compression Ratio    9.6:1
      Shift Type   International five gears
      Start Type   Electric / Kick Start
      Ignition   CDI
      Min. Fuel Consumpetion:   ≤354(g/(kW·h)
      Minimum turning radius :   2600mm
      Lubricant Type #:  SF 15W/40
      Chain:   520 CHOCHO
      Transmission:   Chain Drive
      Size Data
      Overall Size (L x W x H)   2100mm*810mm*1180mm / 82.74 * 31.91* 46.49 Inch
      Wheel Base   1400 mm / 55.16 Inch
      Seat Height   890 mm / 35.07 Inch
      Ground Clearance   290 mm / 11.43 Inch
      Fuel Capacity   2 Gal/9L
      Rims  Aluminium
      Hubs Aluminium
      Tires   YUANXING FT: 80/100-21 - RR: 110/100-18
      Frame/Suspension/Brake system
      Frame   High quality Steel Frame
      Front Fork   Inverted front shock absorber, 48/51-800mm
      Rear Shock   Built-in airbag rear shock absorber
      Upper and Lower Connecting Board   Aluminium alloy
      Handle bar   Aluminium alloy Reducing Handle Bar
      Front Brake   Disc 252mm
      Rear Brake  Disc 220mm
      Exhaust   Stainless Steel
      Packing and Loading
      Packing Size   70.92*18.12*34.78 Inch/ 1800*460*870 mm
      N.W/LBS   118.00 KGS / 259.6 LBS
      G.W/LBS   140.00 KGS / 308.00 LBS



      *It will be up to local DMV to decide whether it will be able to registered on road or not.

      EPA Approved Legal in most of the states, Not for CA, NY, PA, VA, NJ, FL, LA. LEGAL FOR STREET & OFFROAD USE!
