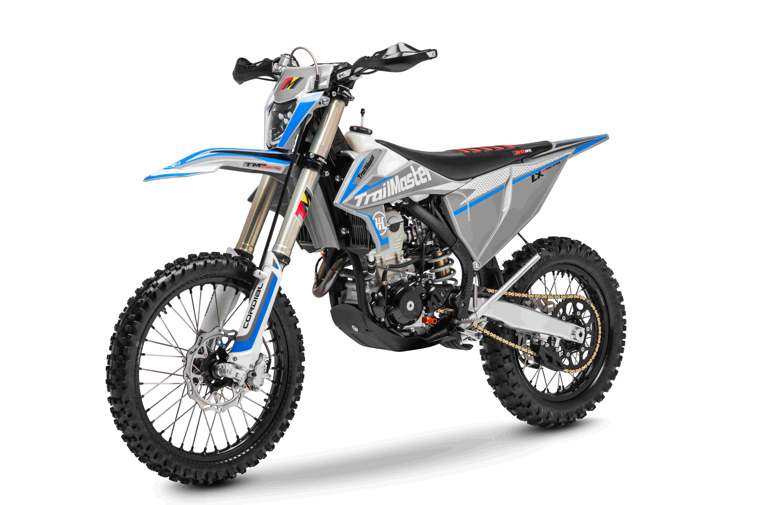

Trailmaster JHL LX300 Pro Dirt Bike, 98% Assembled ,283cc, 6 Speed, Fuel Injected, Water Cooled, Dual Over head Cams, 37.43 inch Seat height, adjustable shocks, 21 inch front tire
*Some large items may require special delivery. May have shipping surcharge on remote area.
- Top 1 Trailmaster Online Dealer in the US
- Lifetime US-Based Technical Support for Free
- One-Year Engine Warranties and Six-Month Parts Guarantees
- Guaranteed Trailmaster Parts Availability
- Authentic Customer Reviews Featured on Our Site
- Found a Lower Price? Call 877-667-6289 to Match It
For more than 20 years Trailmaster has been producing top-quality recreational off-road products. Their line of Pit bikes has taken over the market and now for the first time, in partnership with JHL comes Trailmaster's first pure dirt bike lineup. A newly designed and upgraded suspension and twin-spar frame, upgraded exhaust, Lightweight CNC alloy components, and twin overhead cam Balanced Shaft Engine.
The LX 300 engine, is manufactured by Zongshen and is a twin overhead cam design with a balanced shaft. Water cooled and fuel injected it does not get much better. This is the most sophisticated engine we have ever offered. Finally, an engine that can compete with bikes costing 4 to 5 times as much. The LX300 PRO has an electric start and kick-start backup. The chain is a high-performance heavy-duty Japanese CHOCHO 520HDS.
The TM LX300's frame is packed with upgraded features. The front shocks are two adjustable inverted 54/60-950mm front forks. The rear shock is a high-quality compression and recovery two-way adjustable mono-shock, The suspension can be customized for the rider. The frame is constructed from high-quality, lightweight 30 CrMo high-quality alloys that are jig welded for strength.
The wiring harness is waterproof and the LED headlight has a tough polymer shell.
The exhaust is performance-tuned stainless steel. The handlebars are all 7 series aluminum with foldable CNC alloy brake levers. The triple tree clamps are all CNC aluminum alloy for strength and maximum response to the rider's inputs.
CNC-forged lightweight alloy wheels keep the LX300 light as the rider works through the 6-speed manual transmission. The LX300 comes with Kenda tires for maximum power transfer. LX300 has oversized vented front and rear GG disc brakes.
The Trailmaster TM JHL LX300 is packed with design features to enhance performance, comfort, and reliability, making it an excellent choice for dirt bike enthusiasts. Here are the key selling points of the TM LX300:
-
Powerful Water-Cooling 283cc Zongshen Balance Shaft Engine with EFI
- Efficient and Powerful: The 283cc engine with electronic fuel injection (EFI) and water cooling provides robust power, smooth operation, and optimal fuel efficiency.
-
Large Frame with 37.43 Inch Seat Height
- Comfortable Fit: The large frame and higher seat height ensure a comfortable riding position for taller riders, enhancing control and stability.
-
Dual Chamber Dual Adjustable Inverted Shock Absorbers
- Superior Suspension: These shock absorbers offer dual adjustability for a customized ride, improving handling and comfort on various terrains.
-
Triple Adjustable Rear Shock Absorber
- Enhanced Ride Quality: The triple adjustable rear shock absorber provides superior suspension performance, ensuring a smoother and more comfortable ride.
-
Performance Stainless Steel Muffler
- Improved Exhaust Flow: The stainless steel muffler enhances exhaust flow and overall bike performance, contributing to better power delivery.
-
High Quality LED Headlight with Lens
- Better Night Riding: The LED headlight with lens provides excellent illumination, increasing visibility and safety during night rides or low-light conditions.
-
CNC Forged Alloy Wheels
- Durability and Style: The CNC forged alloy wheels add durability and a stylish look, ensuring long-lasting performance.
-
High Performance Japanese DID Chain
- Reliable Power Transfer: The Japanese DID chain is known for its durability and high performance, providing reliable power transfer.
-
CNC Alloy Unbreakable Levers
- Enhanced Reliability: These unbreakable CNC alloy levers are designed to withstand rough conditions, reducing the risk of breakage.
-
CNC Forged Alloy Upper and Lower Triple Clamps
- Precision Steering: The forged alloy triple clamps improve steering precision and stability.
-
7 Series Aluminum Alloy Handlebar
- Control and Comfort: The aluminum alloy handlebar offers excellent control and comfort, enhancing the overall riding experience.
-
Kenda Tires
- Superior Traction: Kenda tires provide excellent grip and durability, ensuring a stable ride on various terrains.
-
CNC Forged Alloy Wheels and Hubs
- Added Strength: These forged alloy wheels and hubs offer additional strength and durability.
-
Waterproof Wire Harness
- Electrical Protection: The waterproof wire harness protects electrical components from water and dust, ensuring reliability.
-
Non-Slip Gripper Seat
- Rider Stability: The non-slip gripper seat enhances rider stability, providing better control during rides.
-
Quality Front and Rear Disc Brakes
- Superior Stopping Power: The high-quality disc brakes offer excellent stopping power and control, enhancing rider safety.
CA customers: this item is NOT CARB approved, but you may use on your private land.
For more than 20 years Trailmaster has been producing top-quality recreational off-road products. Their line of Pit bikes has taken over the market and now for the first time, in partnership with JHL comes Trailmaster's first pure dirt bike lineup. A newly designed and upgraded suspension and twin-spar frame, upgraded exhaust, Lightweight CNC alloy components, and twin overhead cam Balanced Shaft Engine.
The LX 300 engine, is manufactured by Zongshen and is a twin overhead cam design with a balanced shaft. Water cooled and fuel injected it does not get much better. This is the most sophisticated engine we have ever offered. Finally, an engine that can compete with bikes costing 4 to 5 times as much. The LX300 PRO has an electric start and kick-start backup. The chain is a high-performance heavy-duty Japanese CHOCHO 520HDS.
The TM LX300's frame is packed with upgraded features. The front shocks are two adjustable inverted 54/60-950mm front forks. The rear shock is a high-quality compression and recovery two-way adjustable mono-shock, The suspension can be customized for the rider. The frame is constructed from high-quality, lightweight 30 CrMo high-quality alloys that are jig welded for strength.
The wiring harness is waterproof and the LED headlight has a tough polymer shell.
The exhaust is performance-tuned stainless steel. The handlebars are all 7 series aluminum with foldable CNC alloy brake levers. The triple tree clamps are all CNC aluminum alloy for strength and maximum response to the rider's inputs.
CNC-forged lightweight alloy wheels keep the LX300 light as the rider works through the 6-speed manual transmission. The LX300 comes with Kenda tires for maximum power transfer. LX300 has oversized vented front and rear GG disc brakes.
The Trailmaster TM JHL LX300 is packed with design features to enhance performance, comfort, and reliability, making it an excellent choice for dirt bike enthusiasts. Here are the key selling points of the TM LX300:
-
Powerful Water-Cooling 283cc Zongshen Balance Shaft Engine with EFI
- Efficient and Powerful: The 283cc engine with electronic fuel injection (EFI) and water cooling provides robust power, smooth operation, and optimal fuel efficiency.
-
Large Frame with 37.43 Inch Seat Height
- Comfortable Fit: The large frame and higher seat height ensure a comfortable riding position for taller riders, enhancing control and stability.
-
Dual Chamber Dual Adjustable Inverted Shock Absorbers
- Superior Suspension: These shock absorbers offer dual adjustability for a customized ride, improving handling and comfort on various terrains.
-
Triple Adjustable Rear Shock Absorber
- Enhanced Ride Quality: The triple adjustable rear shock absorber provides superior suspension performance, ensuring a smoother and more comfortable ride.
-
Performance Stainless Steel Muffler
- Improved Exhaust Flow: The stainless steel muffler enhances exhaust flow and overall bike performance, contributing to better power delivery.
-
High Quality LED Headlight with Lens
- Better Night Riding: The LED headlight with lens provides excellent illumination, increasing visibility and safety during night rides or low-light conditions.
-
CNC Forged Alloy Wheels
- Durability and Style: The CNC forged alloy wheels add durability and a stylish look, ensuring long-lasting performance.
-
High Performance Japanese DID Chain
- Reliable Power Transfer: The Japanese DID chain is known for its durability and high performance, providing reliable power transfer.
-
CNC Alloy Unbreakable Levers
- Enhanced Reliability: These unbreakable CNC alloy levers are designed to withstand rough conditions, reducing the risk of breakage.
-
CNC Forged Alloy Upper and Lower Triple Clamps
- Precision Steering: The forged alloy triple clamps improve steering precision and stability.
-
7 Series Aluminum Alloy Handlebar
- Control and Comfort: The aluminum alloy handlebar offers excellent control and comfort, enhancing the overall riding experience.
-
Kenda Tires
- Superior Traction: Kenda tires provide excellent grip and durability, ensuring a stable ride on various terrains.
-
CNC Forged Alloy Wheels and Hubs
- Added Strength: These forged alloy wheels and hubs offer additional strength and durability.
-
Waterproof Wire Harness
- Electrical Protection: The waterproof wire harness protects electrical components from water and dust, ensuring reliability.
-
Non-Slip Gripper Seat
- Rider Stability: The non-slip gripper seat enhances rider stability, providing better control during rides.
-
Quality Front and Rear Disc Brakes
- Superior Stopping Power: The high-quality disc brakes offer excellent stopping power and control, enhancing rider safety.
CA customers: this item is NOT CARB approved, but you may use on your private land.
Specifications
Parameter | Details |
---|---|
Engine Type | Zongshen NC300S, Single cylinder, 4-stroke, 4-valve, water-cooling, double overhead camshaft, with balance shaft |
Displacement (cc) | 283 |
Max Power | 23 (±5%) / 9000 (±5%) |
Max Torque | 25 (±5%) / 7000 (±5%) |
Compression Ratio | 11.6 |
Shift Type | 6 gears |
Start Type | Electric / Kick Start |
Fuel Supply | EFI |
Min. Fuel Consumption | ≤354 g/kw.h |
Minimum turning radius | 2500 mm |
Lubricant Type | SJ 10W-40 |
Transmission | Chain Drive |
Overall Size (L x W x H) | 2190*810*1290 mm / 86.28*31.91*50.82 Inch |
Wheel Base | 1500 mm / 59.1 Inch |
Seat Height | 950 mm / 37.43 Inch |
Ground Clearance | 300 mm / 11.82 Inch |
Fuel Capacity | 7 L / 1.85 Gal |
Wheels | GLM 7-series aluminum alloy, CNC hubs |
Tires | KENDA tire 21"/18" |
Frame | 30 CrMo steel, high strength |
Front shock | Front dual chamber dual adjustable inverted shock absorbers |
Rear Shock | Rear triple adjustable shock absorber |
Rockerarm | CNC aluminium alloy linkage |
Upper and Lower Triple Clamps | CNC forged aluminium alloy |
Handle levers | CNC alloy unbreakable levers |
Handlebar | 7 Series aluminium alloy |
Front Brake | Disc |
Rear Brake | Disc |
Exhaust | Stainless steel muffler |
Fork | Aluminium alloy welded fork |
Chain | DID |
Sprocket | Alloy |
Brake | GG grade |
With | LED headlights with lens |
With | Panasonic cooling fan |
With | Aluminium alloy water tank cover |
With | Plastic engine body covers (left & right) |
With | Engine bottom shield |
With | Hand grip protector |
With | Hourmeter |
With | Rear disc protection cover |
Optional | 3A Lithium battery |
Packing Size | 2200*460*1280 mm / 86.68*18.12*50.43 Inch |
N.W/LBS | 121 KGS / 266.2 LBS |
G.W/LBS | 166 KGS / 365.2 LBS |
Our Company Warranty Policies
Your satisfaction is our #1 goal. We strive to provide our customers with the highest level of customer service and support we can. We strongly suggest our customers read the following information thoroughly. If you have any questions about any of our or the manufacturers policies, please feel free to email us or call 1-877-667-6289.
If you need parts at the bottom of our home page you will find “Parts Request or https://motobuys.com/pages/part-request = simply fill out the form and click submit.
For Tech Support: https://motobuys.com/pages/technical-supports simply fill out the form and click submit
THE MANUFACTURERS WARRANTY COVERS PARTS, ENGINE ONLY FOR ALL PRODUCTS AS FOLLOWS:
OFF ROAD: ATV'S, UTV'S, BUGGIES, GO CARTS AND DIRT BIKES offer 3 MONTHS PARTS, 6 MONTHS ENGINE WARRANTY, MOTOBUYS.com will supply new or rebuilt replacement parts in exchange for defective parts for a period of 3(three) months, as well defective engines for a period of 6(six) months from the date of purchase at no charge.
Buyers will need basic repair & basic setup skills such as using tools; replacing nuts & bolts, filters, light bulbs, fluids, adjustments, etc. If you don’t have this ability we suggest using a mechanic to assist you with your needs. Our tech support Hotline is available to assist you.
THIS LIMITED WARRANTY COVERS THE FOLLOWING PARTS ONLY:
ENGINE: All internal lubricated parts, i.e. Pistons, piston rings, piston pins, connecting rods, rod bearings, camshaft, camshaft bearings, timing chain, crankshaft, crankshaft main bearings, oil pump, water pump, valves, valve springs, valve guides, valve seats, valve lifters and valve push rods. Additionally, the engine head and cylinder will only be covered if damage is caused solely as a result of the mechanical failure of one or more internal lubricated components listed above. (Broken gears any damage from outside impacted is not covered warranty)
ENGINE CASE: The Engine case itself will only be covered if the damage caused was solely as a result of the mechanical failure of one or more of the internal lubricated components listed above. (Broken gears any damage from outside impact is not covered warranty)
DRIVE SYSTEM: All internal lubricated parts contained within the drive axle housing case, i.e. differential, differential gears, drive shaft, drive axles, CV joints, axle bearings, reverse gears and output shafts. The drive axle housing as well as the reverse gearbox housing, if damaged solely as a result of the mechanical failure of one or more or the internal lubricated components contained the drive axle housing will be covered. (Any bent, broken, or damage by outside impact is not covered warranty)
FUEL SYSTEM: For carbureted vehicles; Carburetor, vacuum fuel pump, intake manifold, fuel tank and fuel petcock. For fuel injected vehicles; Fuel injectors, fuel pump, fuel rail and fuel pressure regulator.
ELECTRICAL: Stator, stator pickup, magneto, voltage regulator\ rectifier, CDI, starter relay\ starter solenoid, starter motor, coil, distributor assembly and injector relay.
COOLING SYSTEM: Radiator, radiator cap, thermostat, thermostat housing, temperature indicator switch, cooling fan motors; water pump and water pump housing.
BRAKES: Calipers, drum housings, drum brake linkage, reservoirs, rotors, and lines.
CHASSIS: Frame, swing arms, A-arms, steering controls, (if not caused by jumping or impact.)
TRANSMISSION (Automatic or Standard): All internal lubricated parts contained within the transmission case, i.e. flywheel, hydraulic shift linkage, kick start spindle, kick start secondary gear and transmission gears. The transmission case itself will be covered if the damage was solely as a result of mechanical failure of one or more of the internal lubricated components contained within the transmission case. (Improper shifting of gears by not coming to stop complete can cause damage to internal gears. (""This cause is not covered warranty"")
WHAT IS NOT COVERED: The following is a list of items not covered by the warranty policy. This list is not all inclusive and may be modified at any time. Batteries, Belts, Brakes and Brake Pads, Chains, Clutch, Foot peg mount, Hand Levers, Hoses, Lights, Mirrors, Plastic Body, Seats, Shocks, Spark Plugs, Tires, Transmission.
COVERAGE AND LIMITATIONS: Initial assembly and preparation must be preformed in accordance with the Consumer Motor Vehicle Delivery Preparation and Inspection Form that is provided by the manufacturer. Additionally, all work must be performed by a professional mechanic (i.e. engine repair shop, motorcycle shop, or local auto repair shop) or an authorized Dealer of the manufacturer to assure your vehicle is in good working condition. Upon completion, you must mail in the Consumer Motor Vehicle Delivery Preparation and Inspection Form signed by the technician that performed the service. You will need to provide proof of this service when filing a warranty claim, so (end user) must keep your receipts. Subject to the limitations stated in this agreement,
MOTOBUYS.com agrees (at its sole discretion) to replace a covered component if the covered component fails as a result of one or more of the internal lubricated parts within the component stated warranty period from the date of purchase, while the component has been used under the conditions and in the manner specified by its original manufacturer. Keep in mind these off-road units are built for recreational use only. Your claim may be denied under the following circumstances:
Misuse or abuse of the vehicle, i.e.
Jumping
Stunt riding
Modification of any kind
Racing
Riding at constant wide open throttle (over revving the engine)
Unit is used as a rental
Damage is caused by an accident
Product is used in a manner that it is not designed for
Rider abuse
Improper adjustment\operation of the clutch, i.e. dragging, causing premature burning of the
friction plates
Improper adjustment\operation of brakes. Driving with parking brake on.
Improper gear engagement, i.e. engaging reverse will moving forward
Improper maintenances, i.e.
Lack of routine maintenance
Repairs performed improperly,
Use of incorrect lubricants
Improper initial set up
Use of aftermarket parts for repair
The following items are not covered: Tires, rims, body panels, fuses, forks, shocks, gaskets, light bulbs, seats, CV Boots, oil filter, air filter, fuel filter, filters, clutch wear parts, cables, drive belt, chain, spark plug, any part made from rubber, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts and fasteners.
HANDLING OF WARRANTY CLAIMS:
FOR PARTS: All Parts warranty issues must be processed through https://motobuys.com/pages/part-request or if directed by the manufacturer. You must produce a copy of your original invoice showing the model number, vehicle identification number and date of purchase on the invoice, as well as a copy of your Consumer Motor Vehicle Delivery Preparation and Inspection Form to warranty your product directly. All defective parts must be returned to MOTOBUYS.com or the manufacturer as directed for inspection and verification of defect. MOTOBUYS.com reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.
FOR ENGINES: All Engine warranty issues must be processed through MOTOBUYS.com or if directed through the manufacturer of the unit purchased. In ether case, after obtaining an RMA number from MOTOBUYS.com, you will be provided with a return shipping label. The motor must be removed from the vehicle, safely packaged and shipped to our repair facility located at the address listed on the shipping label. MOTOBUYS.com or the manufacturer reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.
