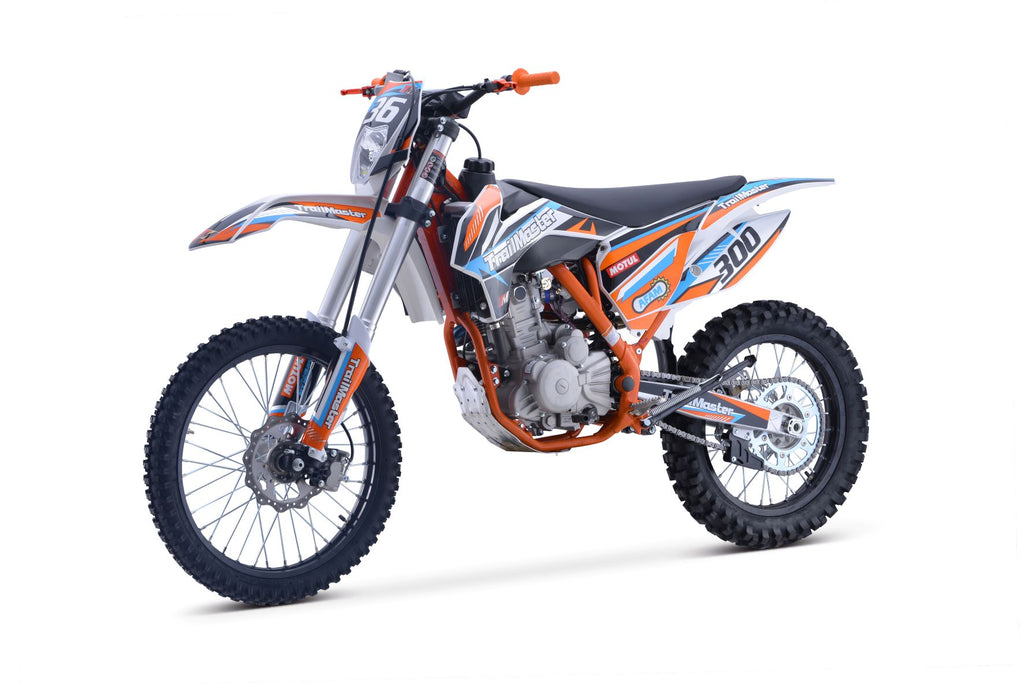

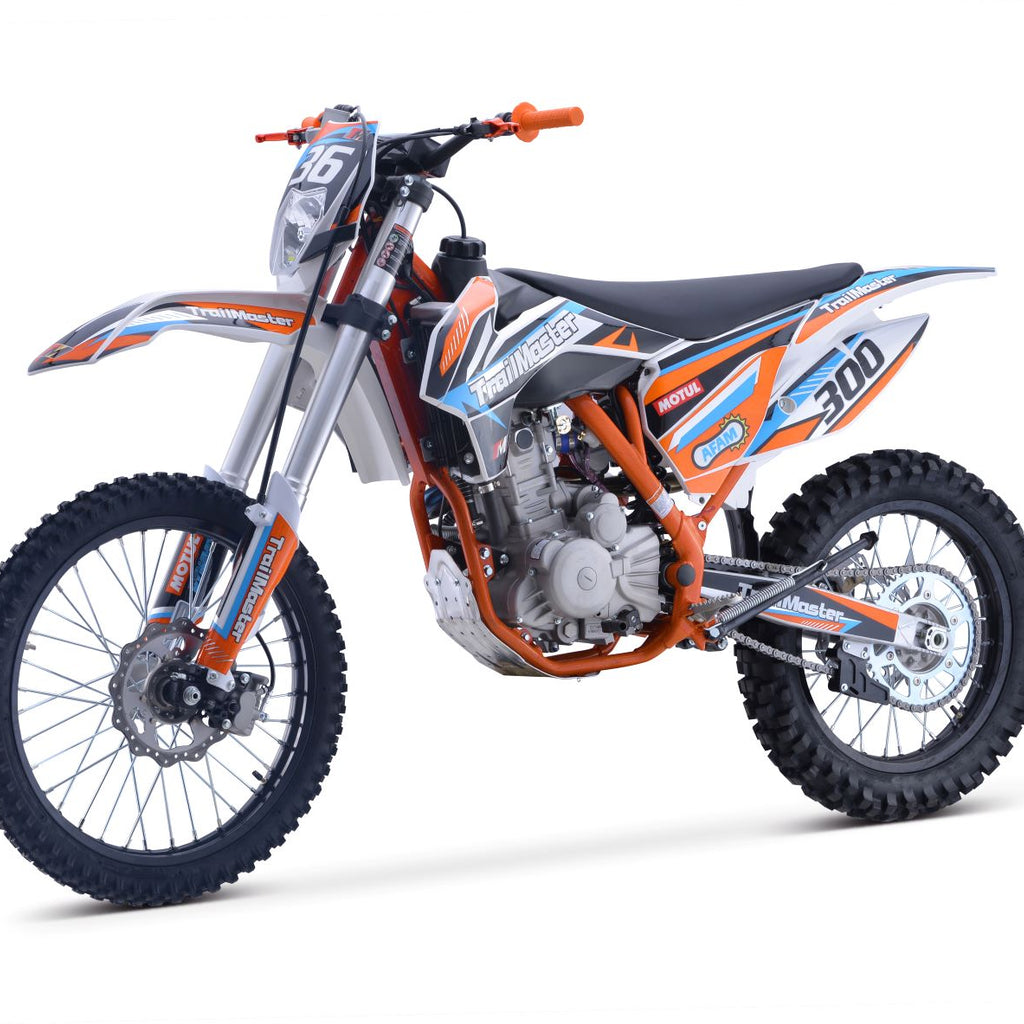

Trailmaster TM36 300cc Off-Road Dirt Bike (Fully Assembled) 21 inch front tire, 37" seat Height, 5 Speed manual, electric start [Competition only! No Warranty!]
*Some large items may require special delivery. May have shipping surcharge on remote area.
- Top 1 Trailmaster Online Dealer in the US
- Lifetime US-Based Technical Support for Free. Click here to get started
- One-Year Engine Warranties and Six-Month Parts Guarantees
- Guaranteed Trailmaster Parts Availability. View Parts
- Authentic Customer Reviews Featured on Our Site
- Found a Lower Price? Call 877-667-6289
The all-new TM36 300cc Pit/Dirt bike is the newest exciting off-road product from one of the industry's largest and most innovative companies. This all-new 300cc full-size dirt bike is the most powerful bike in the class. The larger frame, the taller seat make this a perfect fit for the big guys in the house. Finally a taller seat, a longer frame, and fully adjustable shocks.
There is not another bike in this category that comes close.
The TrailMaster dirt bike offers a superior frame design, improved suspension, and the industry longest 6 months/6,000 miles warranty on engine and transmission.
The transmission features a Wet Multi-Plate, Constant-mesh, two-stage transmission, 5-speed.
The suspension features inverted front forks and 245mm of adjustment.
This all-new dirt bike brings together design features found on bikes that cost five times as much. This is the first true dirt bike from TM. Longer frames and extended suspensions give the bike more suspension for the ruts and rougher terrain than pit bikes do not handle very well.
This is a full-size dirt bike made for trail riding, off-roading, or just cruising.
Motobuys is very excited to introduce the new line of pit/dirt bikes from Trailmaster. We have over 30 years of experience in the power sports industry and we have never been more impressed by a new line of dirt bikes.
This is a complete line of dirt bikes for the whole family. The 110cc TM 10, the TM 11, and the 300cc TM 27 and TM 29, TM 31, TM 36, TM 38 feature top-quality workmanship. From the 10" to 19" front rims, to the thought put into the design, these bikes are clearly the top choice for 2022.
Featuring twin spar frames, front and rear disc brakes. The mono-shock rear end and dual inverted front forks give these small bikes a full suspension. The welded steel frame and twin-spar motor mounts give this bike a great balance and power to weight ratio. Easy-to-access motor mounts allow quick access for maintenance.
Electric start is a feature that is usually only available in larger much more expensive bikes. Only the highest quality engine components are used in the air-cooled engine. Semi-automatic transmission teaches young riders to use the gears to accelerate and bring the bike to a safe stop. Available in manual and semi-automatic transmissions.
Trailmaster has a proven track record for over two decades providing outstanding service to all of our customers. The engineers at Trailamster have been working on these bikes for three years to get them to the market. They are here are they were worth the wait.
Main Features:
- Powerful 4 stroke 279cc liquid cooled engine
- Electric and kick start, 5 gear manual clutch
- Central Tube High Strength Steel Frame
- 59“ wheel base and 37” seat high
- Front tire 21”/Rear Tire 18”
- Dual Piston Caliper, 240mm Disc front brake
- 910mm Inverted Hydraulic Dual Adjustable Forks, 245mm Travel front shock
- 460mm Dual Adjustable Shock with Ballonet, 120mm Travel rear Shock
- LED Headlight
CA customers: this item is NOT CARB approved, but you may use on your private land.
The all-new TM36 300cc Pit/Dirt bike is the newest exciting off-road product from one of the industry's largest and most innovative companies. This all-new 300cc full-size dirt bike is the most powerful bike in the class. The larger frame, the taller seat make this a perfect fit for the big guys in the house. Finally a taller seat, a longer frame, and fully adjustable shocks.
There is not another bike in this category that comes close.
The TrailMaster dirt bike offers a superior frame design, improved suspension, and the industry longest 6 months/6,000 miles warranty on engine and transmission.
The transmission features a Wet Multi-Plate, Constant-mesh, two-stage transmission, 5-speed.
The suspension features inverted front forks and 245mm of adjustment.
This all-new dirt bike brings together design features found on bikes that cost five times as much. This is the first true dirt bike from TM. Longer frames and extended suspensions give the bike more suspension for the ruts and rougher terrain than pit bikes do not handle very well.
This is a full-size dirt bike made for trail riding, off-roading, or just cruising.
Motobuys is very excited to introduce the new line of pit/dirt bikes from Trailmaster. We have over 30 years of experience in the power sports industry and we have never been more impressed by a new line of dirt bikes.
This is a complete line of dirt bikes for the whole family. The 110cc TM 10, the TM 11, and the 300cc TM 27 and TM 29, TM 31, TM 36, TM 38 feature top-quality workmanship. From the 10" to 19" front rims, to the thought put into the design, these bikes are clearly the top choice for 2022.
Featuring twin spar frames, front and rear disc brakes. The mono-shock rear end and dual inverted front forks give these small bikes a full suspension. The welded steel frame and twin-spar motor mounts give this bike a great balance and power to weight ratio. Easy-to-access motor mounts allow quick access for maintenance.
Electric start is a feature that is usually only available in larger much more expensive bikes. Only the highest quality engine components are used in the air-cooled engine. Semi-automatic transmission teaches young riders to use the gears to accelerate and bring the bike to a safe stop. Available in manual and semi-automatic transmissions.
Trailmaster has a proven track record for over two decades providing outstanding service to all of our customers. The engineers at Trailamster have been working on these bikes for three years to get them to the market. They are here are they were worth the wait.
Main Features:
- Powerful 4 stroke 279cc liquid cooled engine
- Electric and kick start, 5 gear manual clutch
- Central Tube High Strength Steel Frame
- 59“ wheel base and 37” seat high
- Front tire 21”/Rear Tire 18”
- Dual Piston Caliper, 240mm Disc front brake
- 910mm Inverted Hydraulic Dual Adjustable Forks, 245mm Travel front shock
- 460mm Dual Adjustable Shock with Ballonet, 120mm Travel rear Shock
- LED Headlight
CA customers: this item is NOT CARB approved, but you may use on your private land.
POWER SYSTEM |
|
Engine Type |
CBS300, Single Cylinder, 4-Stroke,4-Valve, Liquid Cooling, SOHC |
Displacement |
279 ml |
Max Torque |
23/7000 N.m/r/min |
Compression Ratio |
11.1:1 |
Shift Type |
Manual Wet Multi-Plate, Constant-mesh, two-stage transmission, 5-Gears |
Start Type |
Electric & Kick Start |
Carburetor |
PWK34 |
Ignition |
Digital CDI |
Drive Train |
#520 Chain, FT: 13T/RR: 49T Sprocket |
PERFORMANCE |
|
Front Fork |
Φ53*Φ58.5-910mm Inverted Hydraulic Dual Adjustable Forks, 245mm Travel |
Rear Shock |
460mm Dual Adjustable Shock with Ballonet, 120mm Travel |
Front Wheel |
7116 Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 21 |
Rear Wheel |
7116 Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 18 |
Front Tires |
80/100-21 |
Rear Tires |
110/100-18 |
Front Brake |
Dual Piston Caliper, 240mm Disc |
Rear Brake |
Single Piston Caliper, 240mm Disc |
DETAILS |
|
Frame |
Central Tube High Strength Steel Frame |
Swing-Arm |
Steel Swingarm,L=590mm |
Handle Bar |
Tapered Aluminum #7075 |
Overall Size |
86.6"X33.9"49.2"/2200x860x1250mm |
Packing Size |
67.5"X18"X34"/1715x450x860mm |
Wheel Base |
59"/1500 mm |
Seat Height |
37"/940 mm |
Ground Clearance |
11.8"/300 mm |
Fuel Capacity |
6.5 L / 1.72 Gal. |
N.W |
234lbs/117KG |
G.W |
326lbs/148KG |
THE MANUFACTURERS WARRANTY COVERS PARTS, ENGINE ONLY FOR ALL PRODUCTS AS FOLLOWS:
OFF ROAD: ATV'S, UTV'S, BUGGIES, GO CARTS AND DIRT BIKES offer 3 MONTHS PARTS, 6 MONTHS ENGINE WARRANTY, MOTOBUYS.com will supply new or rebuilt replacement parts in exchange for defective parts for a period of 3(three) months, as well defective engines for a period of 6(six) months from the date of purchase at no charge.
Buyers will need basic repair & basic setup skills such as using tools; replacing nuts & bolts, filters, light bulbs, fluids, adjustments, etc. If you don’t have this ability we suggest using a mechanic to assist you with your needs. Our tech support Hotline is available to assist you.
THIS LIMITED WARRANTY COVERS THE FOLLOWING PARTS ONLY:
ENGINE: All internal lubricated parts, i.e. Pistons, piston rings, piston pins, connecting rods, rod bearings, camshaft, camshaft bearings, timing chain, crankshaft, crankshaft main bearings, oil pump, water pump, valves, valve springs, valve guides, valve seats, valve lifters and valve push rods. Additionally, the engine head and cylinder will only be covered if damage is caused solely as a result of the mechanical failure of one or more internal lubricated components listed above. (Broken gears any damage from outside impacted is not covered warranty)
ENGINE CASE: The Engine case itself will only be covered if the damage caused was solely as a result of the mechanical failure of one or more of the internal lubricated components listed above. (Broken gears any damage from outside impact is not covered warranty)
DRIVE SYSTEM: All internal lubricated parts contained within the drive axle housing case, i.e. differential, differential gears, drive shaft, drive axles, CV joints, axle bearings, reverse gears and output shafts. The drive axle housing as well as the reverse gearbox housing, if damaged solely as a result of the mechanical failure of one or more or the internal lubricated components contained the drive axle housing will be covered. (Any bent, broken, or damage by outside impact is not covered warranty)
FUEL SYSTEM: For carbureted vehicles; Carburetor, vacuum fuel pump, intake manifold, fuel tank and fuel petcock. For fuel injected vehicles; Fuel injectors, fuel pump, fuel rail and fuel pressure regulator.
ELECTRICAL: Stator, stator pickup, magneto, voltage regulator\ rectifier, CDI, starter relay\ starter solenoid, starter motor, coil, distributor assembly and injector relay.
COOLING SYSTEM: Radiator, radiator cap, thermostat, thermostat housing, temperature indicator switch, cooling fan motors; water pump and water pump housing.
BRAKES: Calipers, drum housings, drum brake linkage, reservoirs, rotors, and lines.
CHASSIS: Frame, swing arms, A-arms, steering controls, (if not caused by jumping or impact.)
TRANSMISSION (Automatic or Standard): All internal lubricated parts contained within the transmission case, i.e. flywheel, hydraulic shift linkage, kick start spindle, kick start secondary gear and transmission gears. The transmission case itself will be covered if the damage was solely as a result of mechanical failure of one or more of the internal lubricated components contained within the transmission case. (Improper shifting of gears by not coming to stop complete can cause damage to internal gears. ("This cause is not covered warranty")
WHAT IS NOT COVERED: The following is a list of items not covered by the warranty policy. This list is not all inclusive and may be modified at any time. Batteries, Belts, Brakes and Brake Pads, Chains, Clutch, Foot peg mount, Hand Levers, Hoses, Lights, Mirrors, Plastic Body, Seats, Shocks, Spark Plugs, Tires, Transmission.
COVERAGE AND LIMITATIONS: Initial assembly and preparation must be preformed in accordance with the Consumer Motor Vehicle Delivery Preparation and Inspection Form that is provided by the manufacturer. Additionally, all work must be performed by a professional mechanic (i.e. engine repair shop, motorcycle shop, or local auto repair shop) or an authorized Dealer of the manufacturer to assure your vehicle is in good working condition. Upon completion, you must mail in the Consumer Motor Vehicle Delivery Preparation and Inspection Form signed by the technician that performed the service. You will need to provide proof of this service when filing a warranty claim, so (end user) must keep your receipts. Subject to the limitations stated in this agreement,
MOTOBUYS.com agrees (at its sole discretion) to replace a covered component if the covered component fails as a result of one or more of the internal lubricated parts within the component stated warranty period from the date of purchase, while the component has been used under the conditions and in the manner specified by its original manufacturer. Keep in mind these off-road units are built for recreational use only. Your claim may be denied under the following circumstances:
Misuse or abuse of the vehicle, i.e.
Jumping
Stunt riding
Modification of any kind
Racing
Riding at constant wide open throttle (over revving the engine)
Unit is used as a rental
Damage is caused by an accident
Product is used in a manner that it is not designed for
Rider abuse
Improper adjustment\operation of the clutch, i.e. dragging, causing premature burning of the
friction plates
Improper adjustment\operation of brakes. Driving with parking brake on.
Improper gear engagement, i.e. engaging reverse will moving forward
Improper maintenances, i.e.
Lack of routine maintenance
Repairs performed improperly,
Use of incorrect lubricants
Improper initial set up
Use of aftermarket parts for repair
The following items are not covered: Tires, rims, body panels, fuses, forks, shocks, gaskets, light bulbs, seats, CV Boots, oil filter, air filter, fuel filter, filters, clutch wear parts, cables, drive belt, chain, spark plug, any part made from rubber, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts and fasteners.
HANDLING OF WARRANTY CLAIMS:
FOR PARTS: All Parts warranty issues must be processed through https://motobuys.com/pages/part-request or if directed by the manufacturer. You must produce a copy of your original invoice showing the model number, vehicle identification number and date of purchase on the invoice, as well as a copy of your Consumer Motor Vehicle Delivery Preparation and Inspection Form to warranty your product directly. All defective parts must be returned to MOTOBUYS.com or the manufacturer as directed for inspection and verification of defect. MOTOBUYS.com reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.
FOR ENGINES: All Engine warranty issues must be processed through MOTOBUYS.com or if directed through the manufacturer of the unit purchased. In ether case, after obtaining an RMA number from MOTOBUYS.com, you will be provided with a return shipping label. The motor must be removed from the vehicle, safely packaged and shipped to our repair facility located at the address listed on the shipping label. MOTOBUYS.com or the manufacturer reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.
