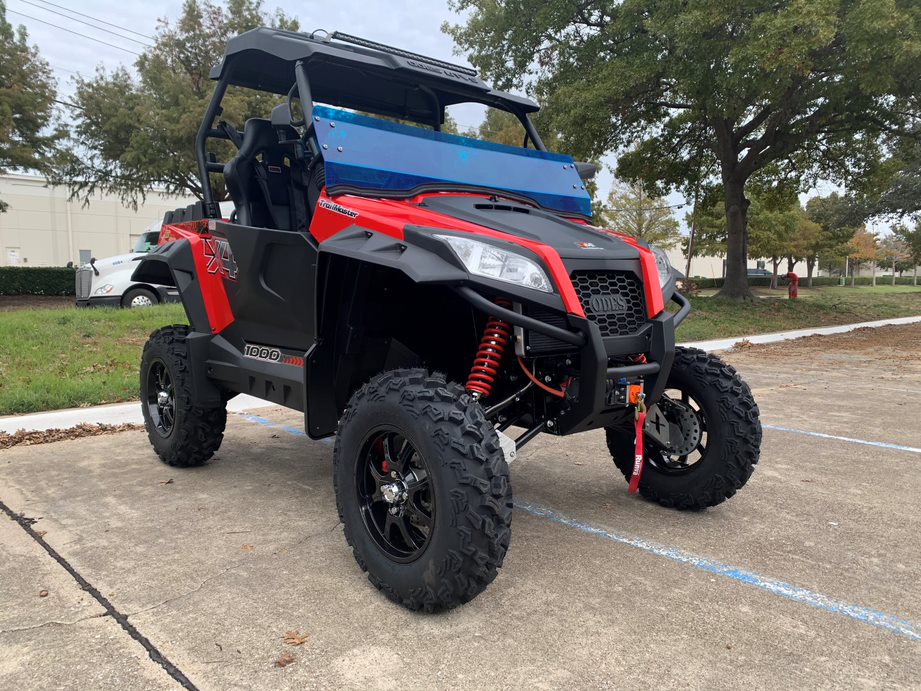

Assembled Trailmaster Sports Cross 1000cc 4X4, Vi LOCK Fully Independent Suspension, Power Steering. Fully Assembled and Ship via car carrier to your door

Finally a Trailmaster for the hardcore off-road enthusiast. For almost two decades Trailamster has made great light and medium duty UTV and off-road Go Karts.  As they have done with every product they took their time and designed a 1000cc, 85hp V Twin monster, and FINALLY, it is ready. Whether you are running the gullies and sand of the deserts in the southwest or you need the power to make it up the steep slopes of the Rocky Mountains this ALL NEW Sports Cross has the power to bring home a smile and the price to leave enough money for the gas to get there.

Trailmaster designed this unit literally from the ground up. The all-new patented Vi-Lock suspension has one of the longest suspension travels in this class. The fully adjustable nitrogen-filled coil over shocks, and fully balanced and dampened suspension components keep this outstanding unit on the road and right side up.  A fully welded roll cage, high-back race seats, and racing harness complete the package.

The high torque, balanced cam engine develops 85 hp and with a vehicle weight of only 1800 lbs, the power-to-weight ratio is outstanding.  Electronic Fuel Injection delivers power at any altitude and weather and the electronic power steering makes this unit easy to handle at any speed. The transmission is a fully variable CVT with high/low ranges and park mode.   A custom Two Brothers Racing Exhaust will let this perfectly balanced package breathe, Equipped with 256 mm front and rear ventilated brakes.

The Sports Cross comes equipped with a 3500lb winch and can tow up to 3500lb with a 610lb tongue weight. There are 2 cubic feet of under-seat and dash storage.  Fuel capacity of 8.5 gallons.  Split fold-down Windshield, Integrated LED light Bar, and full DOT light Package all come standard.  No up charges.

CA customers: this item is NOT CARB approved, but you may use on your private land.

Vi-LOCK™ Suspension Front and Rear

Front 3500lbs Winch

QUANTUM™ Windshield

Racing Seats

Full ABS

1000cc V-Twin Motor•

85 Horsepower•

Adjustable Seats

Two Brothers Racing Exhaust

Front/Rear Bumper

Push Button Start

Limited Slip

Powder Coated Bars

Tow Hitch 2200lbs

4x4 Differential Lock Mode

Electronic Power Steering•

15” Wheels 29” Tires

Available Colors: White /Blue Grey / Orange Red/black

Front tires 29X8X15 in.

Fuel Delivery System Electronic fuel injection (EFI)

Rear tires 29X10X15 in.

Transmission CVT, L-H-N-R-P

Wheels15 in aluminum wheels drive train2×4, 4×4,

Limited Slip, 4×4 Differential LockMod

Electronic Power Steering

(EPS)SUSPENSION

DIMENSIONS/CAPACITIES

106"(L) x 68"(W) x 72"(H)

Front shocks Adjustable Nitrogen Gas Coil Overs(269.2cm) x (172.7cm) x (182.8cm)

Rear Suspension

Rear shocks Adjustable Nitrogen Gas Coil Overs(232.0cmx(185.0cm)x(127.6cm)

Rear Dual 256 mm ventilated disc brakes with hydraulic twin-piston calipers

40HQBRAKE

Wheelbase 68 in (175.2 cm)

Front Dual 256 mm ventilated disc brakes with hydraulic twin-piston calipers

Ground Clearance16 in.(40.6cm)

Seat height39 in(99cm)

Dry weight 1807lbs Lug pattem4x110

Storage capacityGlove Box: 1.4 gal (3.7 L) Seat Storage: 14.5 gal 2(54.8 L)

Towing capacity3500lbs (610 Tongue)

Our Company Warranty Policies
Your satisfaction is our #1 goal. We strive to provide our customers with the highest level of customer service and support we can. We strongly suggest our customers read the following information thoroughly. If you have any questions about any of our or the manufacturers policies, please feel free to email us or call 1-877-667-6289.
If you need parts at the bottom of our home page you will find “Parts Request or https://motobuys.com/pages/part-request = simply fill out the form and click submit.
For Tech Support: https://motobuys.com/pages/technical-supports simply fill out the form and click submit
THE MANUFACTURERS WARRANTY COVERS PARTS, ENGINE ONLY FOR ALL PRODUCTS AS FOLLOWS:
OFF ROAD: ATV'S, UTV'S, BUGGIES, GO CARTS AND DIRT BIKES offer 3 MONTHS PARTS, 6 MONTHS ENGINE WARRANTY, MOTOBUYS.com will supply new or rebuilt replacement parts in exchange for defective parts for a period of 3(three) months, as well defective engines for a period of 6(six) months from the date of purchase at no charge.
Buyers will need basic repair & basic setup skills such as using tools; replacing nuts & bolts, filters, light bulbs, fluids, adjustments, etc. If you don’t have this ability we suggest using a mechanic to assist you with your needs. Our tech support Hotline is available to assist you.
THIS LIMITED WARRANTY COVERS THE FOLLOWING PARTS ONLY:
ENGINE: All internal lubricated parts, i.e. Pistons, piston rings, piston pins, connecting rods, rod bearings, camshaft, camshaft bearings, timing chain, crankshaft, crankshaft main bearings, oil pump, water pump, valves, valve springs, valve guides, valve seats, valve lifters and valve push rods. Additionally, the engine head and cylinder will only be covered if damage is caused solely as a result of the mechanical failure of one or more internal lubricated components listed above. (Broken gears any damage from outside impacted is not covered warranty)
ENGINE CASE: The Engine case itself will only be covered if the damage caused was solely as a result of the mechanical failure of one or more of the internal lubricated components listed above. (Broken gears any damage from outside impact is not covered warranty)
DRIVE SYSTEM: All internal lubricated parts contained within the drive axle housing case, i.e. differential, differential gears, drive shaft, drive axles, CV joints, axle bearings, reverse gears and output shafts. The drive axle housing as well as the reverse gearbox housing, if damaged solely as a result of the mechanical failure of one or more or the internal lubricated components contained the drive axle housing will be covered. (Any bent, broken, or damage by outside impact is not covered warranty)
FUEL SYSTEM: For carburated vehicles; Carburetor, vacuum fuel pump, intake manifold, fuel tank and fuel petcock. For fuel injected vehicles; Fuel injectors, fuel pump, fuel rail and fuel pressure regulator.
ELECTRICAL: Stator, stator pickup, magneto, voltage regulator\ rectifier, CDI, starter relay\ starter solenoid, starter motor, coil, distributor assembly and injector relay.
COOLING SYSTEM: Radiator, radiator cap, thermostat, thermostat housing, temperature indicator switch, cooling fan motors; water pump and water pump housing.
BRAKES: Calipers, drum housings, drum brake linkage, reservoirs, rotors, and lines.
CHASSIS: Frame, swing arms, A-arms, steering controls, (if not caused by jumping or impact.)
TRANSMISSION (Automatic or Standard): All internal lubricated parts contained within the transmission case, i.e. flywheel, hydraulic shift linkage, kick start spindle, kick start secondary gear and transmission gears. The transmission case itself will be covered if the damage was solely as a result of mechanical failure of one or more of the internal lubricated components contained within the transmission case. (Improper shifting of gears by not coming to stop complete can cause damage to internal gears. (""This cause is not covered warranty"")


WHAT IS NOT COVERED: The following is a list of items not covered by the warranty policy. This list is not all inclusive and may be modified at any time. Batteries, Belts, Brakes and Brake Pads, Chains, Clutch, Foot peg mount, Hand Levers, Hoses, Lights, Mirrors, Plastic Body, Seats, Shocks, Spark Plugs, Tires, Transmission.
COVERAGE AND LIMITATIONS: Initial assembly and preparation must be preformed in accordance with the Consumer Motor Vehicle Delivery Preparation and Inspection Form that is provided by the manufacturer. Additionally, all work must be performed by a professional mechanic (i.e. engine repair shop, motorcycle shop, or local auto repair shop) or an authorized Dealer of the manufacturer to assure your vehicle is in good working condition. Upon completion, you must mail in the Consumer Motor Vehicle Delivery Preparation and Inspection Form signed by the technician that performed the service. You will need to provide proof of this service when filing a warranty claim, so (end user) must keep your receipts. Subject to the limitations stated in this agreement,
MOTOBUYS.com agrees (at its sole discretion) to replace a covered component if the covered component fails as a result of one or more of the internal lubricated parts within the component stated warranty period from the date of purchase, while the component has been used under the conditions and in the manner specified by its original manufacturer. Keep in mind these off-road units are built for recreational use only. Your claim may be denied under the following circumstances:
Misuse or abuse of the vehicle, i.e.
Jumping
Stunt riding
Modification of any kind
Racing
Riding at constant wide open throttle (over revving the engine)
Unit is used as a rental
Damage is caused by an accident
Product is used in a manner that it is not designed for
Rider abuse
Improper adjustment\operation of the clutch, i.e. dragging, causing premature burning of the
friction plates
Improper adjustment\operation of brakes. Driving with parking brake on.
Improper gear engagement, i.e. engaging reverse will moving forward
Improper maintainance, i.e.
Lack of routine maintenance
Repairs performed improperly,
Use of incorrect lubricants
Improper initial set up
Use of aftermarket parts for repair
The following items are not covered: Tires, rims, body panels, fuses, forks, shocks, gaskets, light bulbs, seats, CV Boots, oil filter, air filter, fuel filter, filters, clutch wear parts, cables, drive belt, chain, spark plug, any part made from rubber, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts and fasteners.
HANDLING OF WARRANTY CLAIMS:
FOR PARTS: All Parts warranty issues must be processed through https://motobuys.com/pages/part-request  or if directed by the manufacturer. You must produce a copy of your original invoice showing the model number, vehicle identification number and date of purchase on the invoice, as well as a copy of your Consumer Motor Vehicle Delivery Preparation and Inspection Form to warranty your product directly. All defective parts must be returned to MOTOBUYS.com or the manufacturer as directed for inspection and verification of defect. MOTOBUYS.com reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.
FOR ENGINES: All Engine warranty issues must be processed through MOTOBUYS.com or if directed through the manufacturer of the unit purchased. In ether case, after obtaining an RMA number from MOTOBUYS.com, you will be provided with a return shipping label. The motor must be removed from the vehicle, safely packaged and shipped to our repair facility located at the address listed on the shipping label. MOTOBUYS.com or the manufacturer reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.
