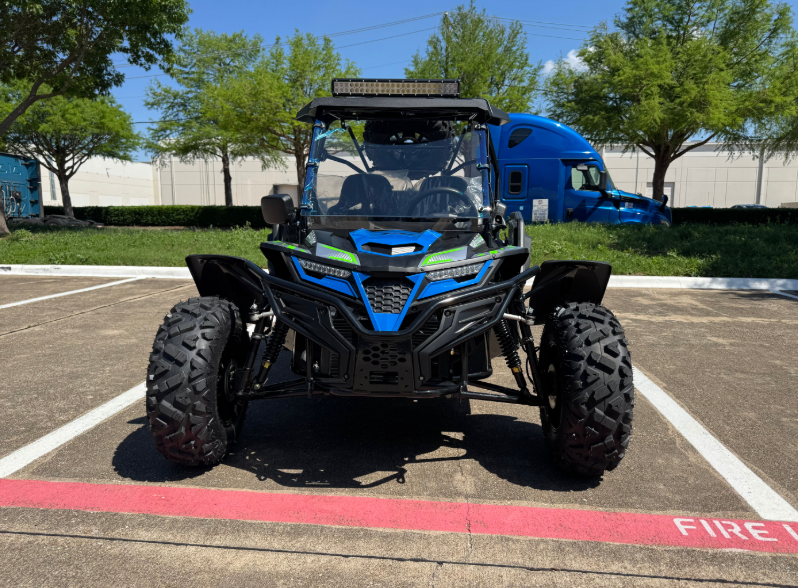

TrailMaster Cheetah 300 Pro 275.6cc Adult Go-Kart, EFI, Water-Cooled, Automatic CVT with Reverse, 2 Seats, Side Doors, Hard Top
*Some large items may require special delivery. May have shipping surcharge on remote area.
**Estimated delivery times are approximate. Orders require assembly, or shipping to remote or rural areas may take longer.
- Largest online dealer for industry leading brands of TrailMaster, Icebear and RPS
- Lifetime Technical Support - Free and Based in the US. Click here to get started
- One-Year Engine Warranty
- Authentic Customer Product Reviews
- Safe and Easy Online Shopping Experience
- Guaranteed parts supplies for active models on TrailMaster, Icebear and RPS brand products.
TrailMaster’s Cheetah 300 Pro EFI is the latest addition to the Trailmaster full-size off-road go-kart line. The newest generation comes with the same super-reliable Electronic Fuel Injection (EFI) system, 275cc engine packing 18 hp. The proven Fuel injection is great in higher altitudes and high humidity. The 300E Pro is rated at 500 lbs, so take a friend. The CVT transmission is easy to drive and easy to maintain.
Maximum low-end torque is the Cheetah line-up's difference compared to the other fine Trailamster line-up. The Cheetah series features an articulating rear suspension equipped for maximum travel over the bumps. Now equipped with 25-inch tires front and rear for increased ground clearance. The suspension features dual A-arms and hydraulic brakes, and rack-and-pinion steering allows for quick turning and reactions.
Other features include a windshield, light bar, LED head lights and side view mirrors, turn signals and tail lights, a parking brake, four-point safety seat belts, and a removable hard top and hard doors.
TrailMaster’s Cheetah 300 Pro EFI is the latest addition to the Trailmaster full-size off-road go-kart line. The newest generation comes with the same super-reliable Electronic Fuel Injection (EFI) system, 275cc engine packing 18 hp. The proven Fuel injection is great in higher altitudes and high humidity. The 300E Pro is rated at 500 lbs, so take a friend. The CVT transmission is easy to drive and easy to maintain.
Maximum low-end torque is the Cheetah line-up's difference compared to the other fine Trailamster line-up. The Cheetah series features an articulating rear suspension equipped for maximum travel over the bumps. Now equipped with 25-inch tires front and rear for increased ground clearance. The suspension features dual A-arms and hydraulic brakes, and rack-and-pinion steering allows for quick turning and reactions.
Other features include a windshield, light bar, LED head lights and side view mirrors, turn signals and tail lights, a parking brake, four-point safety seat belts, and a removable hard top and hard doors.
| 300cc UTV Specifications | |
|---|---|
| Engine Information | |
| Certification | EPA certified |
| Engine Type | 4-stroke, single cylinder, water-cooled |
| Displacement | 275.6cc |
| Fuel System | EFI |
| Max Horsepower | 13 kW @ 7500 RPM |
| Max Torque | 22 Nm @ 5000 RPM |
| Bore x Stroke | 2.85 x 2.63 inches |
| Max Speed | 30 mph |
| EFI Ignition Module | RM1A1 |
| Starting System | Electric |
| Battery | 12V 10Ah |
| Engine Oil | SAE 10W-40 |
| General Information | |
| Clutch | Automatic CVT with reverse |
| Driveline / Driving Wheel | Chain / Dual wheel drive |
| Suspension (F / R) | Dual A-Arm / Independent suspension |
| Brakes (F / R) | Hydraulic Disc Brakes (Front & Rear) |
| Tires (F / R) | 25x8-12 / 25x10-12 |
| Fuel Capacity | 2.64 gallons |
| Weight (G.W. / N.W.) | 880 / 780 lbs |
| Max Load | 500 lbs |
| Dimension Information | |
| Wheelbase | 71 inches |
| Overall Dimensions (L x W x H) | 92.1 x 55 x 63 inches |
| Crate Size | 91 x 48 x 34 inches |
| Seat Height | 18.5 inches |
| Minimum Ground Clearance | 5.9 inches |
| Pedal to Seat Back Distance | 36” to 42” |
| Key Features | |
|
|
Our Company Warranty Policies
Your satisfaction is our #1 goal. We strive to provide our customers with the highest level of customer service and support we can. We strongly suggest our customers read the following information thoroughly. If you have any questions about any of our or the manufacturers policies, please feel free to email us or call 1-877-667-6289.
If you need parts at the bottom of our home page you will find “Parts Request or https://motobuys.com/pages/part-request = simply fill out the form and click submit.
For Tech Support: https://motobuys.com/pages/technical-supports simply fill out the form and click submit
THE MANUFACTURERS WARRANTY COVERS PARTS, ENGINE ONLY FOR ALL PRODUCTS AS FOLLOWS:
OFF ROAD: ATV'S, UTV'S, BUGGIES, GO CARTS AND DIRT BIKES offer 3 MONTHS PARTS, 6 MONTHS ENGINE WARRANTY, MOTOBUYS.com will supply new or rebuilt replacement parts in exchange for defective parts for a period of 3(three) months, as well defective engines for a period of 6(six) months from the date of purchase at no charge.
Buyers will need basic repair & basic setup skills such as using tools; replacing nuts & bolts, filters, light bulbs, fluids, adjustments, etc. If you don’t have this ability we suggest using a mechanic to assist you with your needs. Our tech support Hotline is available to assist you.
THIS LIMITED WARRANTY COVERS THE FOLLOWING PARTS ONLY:
ENGINE: All internal lubricated parts, i.e. Pistons, piston rings, piston pins, connecting rods, rod bearings, camshaft, camshaft bearings, timing chain, crankshaft, crankshaft main bearings, oil pump, water pump, valves, valve springs, valve guides, valve seats, valve lifters and valve push rods. Additionally, the engine head and cylinder will only be covered if damage is caused solely as a result of the mechanical failure of one or more internal lubricated components listed above. (Broken gears any damage from outside impacted is not covered warranty)
ENGINE CASE: The Engine case itself will only be covered if the damage caused was solely as a result of the mechanical failure of one or more of the internal lubricated components listed above. (Broken gears any damage from outside impact is not covered warranty)
DRIVE SYSTEM: All internal lubricated parts contained within the drive axle housing case, i.e. differential, differential gears, drive shaft, drive axles, CV joints, axle bearings, reverse gears and output shafts. The drive axle housing as well as the reverse gearbox housing, if damaged solely as a result of the mechanical failure of one or more or the internal lubricated components contained the drive axle housing will be covered. (Any bent, broken, or damage by outside impact is not covered warranty)
FUEL SYSTEM: For carburated vehicles; Carburetor, vacuum fuel pump, intake manifold, fuel tank and fuel petcock. For fuel injected vehicles; Fuel injectors, fuel pump, fuel rail and fuel pressure regulator.
ELECTRICAL: Stator, stator pickup, magneto, voltage regulator\ rectifier, CDI, starter relay\ starter solenoid, starter motor, coil, distributor assembly and injector relay.
COOLING SYSTEM: Radiator, radiator cap, thermostat, thermostat housing, temperature indicator switch, cooling fan motors; water pump and water pump housing.
BRAKES: Calipers, drum housings, drum brake linkage, reservoirs, rotors, and lines.
CHASSIS: Frame, swing arms, A-arms, steering controls, (if not caused by jumping or impact.)
TRANSMISSION (Automatic or Standard): All internal lubricated parts contained within the transmission case, i.e. flywheel, hydraulic shift linkage, kick start spindle, kick start secondary gear and transmission gears. The transmission case itself will be covered if the damage was solely as a result of mechanical failure of one or more of the internal lubricated components contained within the transmission case. (Improper shifting of gears by not coming to stop complete can cause damage to internal gears. (""This cause is not covered warranty"")
WHAT IS NOT COVERED: The following is a list of items not covered by the warranty policy. This list is not all inclusive and may be modified at any time. Batteries, Belts, Brakes and Brake Pads, Chains, Clutch, Foot peg mount, Hand Levers, Hoses, Lights, Mirrors, Plastic Body, Seats, Shocks, Spark Plugs, Tires, Transmission.
COVERAGE AND LIMITATIONS: Initial assembly and preparation must be preformed in accordance with the Consumer Motor Vehicle Delivery Preparation and Inspection Form that is provided by the manufacturer. Additionally, all work must be performed by a professional mechanic (i.e. engine repair shop, motorcycle shop, or local auto repair shop) or an authorized Dealer of the manufacturer to assure your vehicle is in good working condition. Upon completion, you must mail in the Consumer Motor Vehicle Delivery Preparation and Inspection Form signed by the technician that performed the service. You will need to provide proof of this service when filing a warranty claim, so (end user) must keep your receipts. Subject to the limitations stated in this agreement,
MOTOBUYS.com agrees (at its sole discretion) to replace a covered component if the covered component fails as a result of one or more of the internal lubricated parts within the component stated warranty period from the date of purchase, while the component has been used under the conditions and in the manner specified by its original manufacturer. Keep in mind these off-road units are built for recreational use only. Your claim may be denied under the following circumstances:
Misuse or abuse of the vehicle, i.e.
Jumping
Stunt riding
Modification of any kind
Racing
Riding at constant wide open throttle (over revving the engine)
Unit is used as a rental
Damage is caused by an accident
Product is used in a manner that it is not designed for
Rider abuse
Improper adjustment\operation of the clutch, i.e. dragging, causing premature burning of the
friction plates
Improper adjustment\operation of brakes. Driving with parking brake on.
Improper gear engagement, i.e. engaging reverse will moving forward
Improper maintainance, i.e.
Lack of routine maintenance
Repairs performed improperly,
Use of incorrect lubricants
Improper initial set up
Use of aftermarket parts for repair
The following items are not covered: Tires, rims, body panels, fuses, forks, shocks, gaskets, light bulbs, seats, CV Boots, oil filter, air filter, fuel filter, filters, clutch wear parts, cables, drive belt, chain, spark plug, any part made from rubber, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts and fasteners.
HANDLING OF WARRANTY CLAIMS:
FOR PARTS: All Parts warranty issues must be processed through https://motobuys.com/pages/part-request or if directed by the manufacturer. You must produce a copy of your original invoice showing the model number, vehicle identification number and date of purchase on the invoice, as well as a copy of your Consumer Motor Vehicle Delivery Preparation and Inspection Form to warranty your product directly. All defective parts must be returned to MOTOBUYS.com or the manufacturer as directed for inspection and verification of defect. MOTOBUYS.com reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.
FOR ENGINES: All Engine warranty issues must be processed through MOTOBUYS.com or if directed through the manufacturer of the unit purchased. In ether case, after obtaining an RMA number from MOTOBUYS.com, you will be provided with a return shipping label. The motor must be removed from the vehicle, safely packaged and shipped to our repair facility located at the address listed on the shipping label. MOTOBUYS.com or the manufacturer reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.
