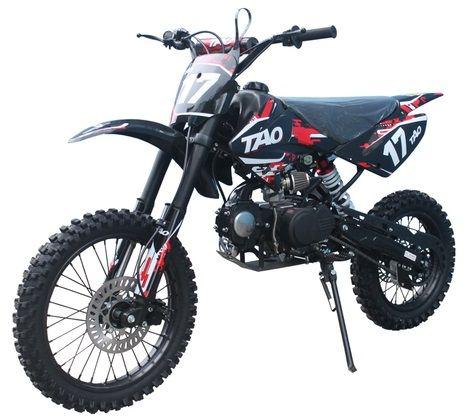

Tao DB-17 - 125cc Deluxe Dirt / Pit Bike 17" front rim 4 Speed manual, 30.72 inch seat height

Speed Manual transmission, Front and rear Disc Brakes, Rugged Suspension,  Oversize 17" tire, handlebar kill switch key switch, safety, and security are all there. Compare to X-Pro and Tao DB17

--WATCH THE VIDEO OF THIS MODEL HERE!

Riders are not all the same height at the same age, and that is why Jet Moto offers so many choices when it comes to Dirt Bikes. When it comes to the new Jet Moto XR-17 with the larger tire, you will get the same great machine as their standard Pit Bikes, but this one offers a bigger wheel and a two-inch taller seat height. That combination means it will be perfect for thousands of teens and smaller adults who just want to get out on the trails and have fun.

It is loaded with features plus it is a super fun and reliable bike. The XR-17 version offers an easy Kick starter that makes it easy to get going, and its four-speed transmission gives you all the control of a full-sized bike.



Sure, the Tao XR-17 is loaded with features, especially for such a fun bike and affordable bike:

easy kick start,

Hydraulic front & rear disc brakes,

rugged rear suspension,

powerful 125cc engine with a wide powerband.

Proven Reliable Engine

The XR-17 offers a dependable four-stroke single-cylinder engine with awesome performance and a wide powerband that is perfect for all types of riders, including beginners.

Stopping Power

The XR-17 front & rear disc brakes are a perfect example. It is a big-brand bike feature at a fraction of the cost of our competitors.

Manual clutch

Front and Rear Hydraulic Disc Brakes

Front Hand Brake plus Rear Foot Brake

C.D.I Electronics

Easy Kick Start

Rugged Rear Shock: 125cc 4 Speed Dirt Bike comes with an upgraded rugged rear shock.

CDI Ignition System: 4 Speed Dirt Bike is also equipped with a CDI ignition system.

Features original decals that are professionally designed to give it a professional look.

Upgraded Alloy Rims: Lightweight ALLOY RIMS gives this dirt/pit bike perfect maneuverability.

Upgraded Alloy Handle Bar, Cross Bar, & Triple Tree:

All bars on this kid's dirt bike have also been upgraded to aluminum alloy for a more robust and lightweight dirt bike.

Upgraded Alloy Exhaust & Brake Lever Tip: Upgraded with an alloy exhaust and brake lever tip.

Heavy Duty Chain and Sprocket: Equipped with a heavy-duty chain and sprocket. This heavy-duty chain and performance sprocket work together for the highest durability in this pit bike.

Transmission: 4-Speed 1-down, 3-up, 4-speed manual transmission.

125cc 4-Stroke Engine: 9 horsepower.

High-Quality Inverted Front Forks:

17" Front and 14" Rear Tires:

Dual Hydraulic Disc Brakes: For the ultimate in-stopping power.

CA customers: This item is NOT CARB approved, but you may use on your private land.

Engine Type:	125CC,Air cooled, 4-stroke, 1-cylinder
Start Type:	Kick Start
Transmission:	Manual 4-Speed with Chain Drive
Engine Gear:	4-speed (1-N-2-3-4)
Wheelbase(inch):	49.20 Inches (1250 mm)
Ignition:	CDI
Fuel Capacity:	1.5 Gal (5.5 L)
Front Brake:	Hydraulic Disc --- Hand Controlled
Rear Brake:	Hydraulic Disc --- Foot Controlled
Tire Front:	70/100 - 17
Tire Rear:	90/100 - 14
Rim Front:	1.6 x 17 (steel)
Rim Rear:	1.8 x 14 (steel)
Dimension:
G.W.(lbs):	200 LBS (91KG)
N.W.(lbs):	154 LBS (70KG)
Overall Size(inch):	70 x 30 x 43 Inches (1770 x 765 x 1090 mm)
Seat Height:	30.70 Inches (780 mm)
Ground Clearance:	13.0 Inches (330 mm)

Our Company Warranty Policies
Your satisfaction is our #1 goal. We strive to provide our customers with the highest level of customer service and support we can. We strongly suggest our customers read the following information thoroughly. If you have any questions about any of our or the manufacturers policies, please feel free to email us or call 1-877-667-6289.
If you need parts at the bottom of our home page you will find “Parts Request or https://motobuys.com/pages/part-request = simply fill out the form and click submit.
For Tech Support: https://motobuys.com/pages/technical-supports simply fill out the form and click submit
THE MANUFACTURERS WARRANTY COVERS PARTS, ENGINE ONLY FOR ALL PRODUCTS AS FOLLOWS:
OFF ROAD: ATV'S, UTV'S, BUGGIES, GO CARTS AND DIRT BIKES offer 3 MONTHS PARTS, 6 MONTHS ENGINE WARRANTY, MOTOBUYS.com will supply new or rebuilt replacement parts in exchange for defective parts for a period of 3(three) months, as well defective engines for a period of 6(six) months from the date of purchase at no charge.
Buyers will need basic repair & basic setup skills such as using tools; replacing nuts & bolts, filters, light bulbs, fluids, adjustments, etc. If you don’t have this ability we suggest using a mechanic to assist you with your needs. Our tech support Hotline is available to assist you.
THIS LIMITED WARRANTY COVERS THE FOLLOWING PARTS ONLY:
ENGINE: All internal lubricated parts, i.e. Pistons, piston rings, piston pins, connecting rods, rod bearings, camshaft, camshaft bearings, timing chain, crankshaft, crankshaft main bearings, oil pump, water pump, valves, valve springs, valve guides, valve seats, valve lifters and valve push rods. Additionally, the engine head and cylinder will only be covered if damage is caused solely as a result of the mechanical failure of one or more internal lubricated components listed above. (Broken gears any damage from outside impacted is not covered warranty)
ENGINE CASE: The Engine case itself will only be covered if the damage caused was solely as a result of the mechanical failure of one or more of the internal lubricated components listed above. (Broken gears any damage from outside impact is not covered warranty)
DRIVE SYSTEM: All internal lubricated parts contained within the drive axle housing case, i.e. differential, differential gears, drive shaft, drive axles, CV joints, axle bearings, reverse gears and output shafts. The drive axle housing as well as the reverse gearbox housing, if damaged solely as a result of the mechanical failure of one or more or the internal lubricated components contained the drive axle housing will be covered. (Any bent, broken, or damage by outside impact is not covered warranty)
FUEL SYSTEM: For carburated vehicles; Carburetor, vacuum fuel pump, intake manifold, fuel tank and fuel petcock. For fuel injected vehicles; Fuel injectors, fuel pump, fuel rail and fuel pressure regulator.
ELECTRICAL: Stator, stator pickup, magneto, voltage regulator\ rectifier, CDI, starter relay\ starter solenoid, starter motor, coil, distributor assembly and injector relay.
COOLING SYSTEM: Radiator, radiator cap, thermostat, thermostat housing, temperature indicator switch, cooling fan motors; water pump and water pump housing.
BRAKES: Calipers, drum housings, drum brake linkage, reservoirs, rotors, and lines.
CHASSIS: Frame, swing arms, A-arms, steering controls, (if not caused by jumping or impact.)
TRANSMISSION (Automatic or Standard): All internal lubricated parts contained within the transmission case, i.e. flywheel, hydraulic shift linkage, kick start spindle, kick start secondary gear and transmission gears. The transmission case itself will be covered if the damage was solely as a result of mechanical failure of one or more of the internal lubricated components contained within the transmission case. (Improper shifting of gears by not coming to stop complete can cause damage to internal gears. (""This cause is not covered warranty"")


WHAT IS NOT COVERED: The following is a list of items not covered by the warranty policy. This list is not all inclusive and may be modified at any time. Batteries, Belts, Brakes and Brake Pads, Chains, Clutch, Foot peg mount, Hand Levers, Hoses, Lights, Mirrors, Plastic Body, Seats, Shocks, Spark Plugs, Tires, Transmission.
COVERAGE AND LIMITATIONS: Initial assembly and preparation must be preformed in accordance with the Consumer Motor Vehicle Delivery Preparation and Inspection Form that is provided by the manufacturer. Additionally, all work must be performed by a professional mechanic (i.e. engine repair shop, motorcycle shop, or local auto repair shop) or an authorized Dealer of the manufacturer to assure your vehicle is in good working condition. Upon completion, you must mail in the Consumer Motor Vehicle Delivery Preparation and Inspection Form signed by the technician that performed the service. You will need to provide proof of this service when filing a warranty claim, so (end user) must keep your receipts. Subject to the limitations stated in this agreement,
MOTOBUYS.com agrees (at its sole discretion) to replace a covered component if the covered component fails as a result of one or more of the internal lubricated parts within the component stated warranty period from the date of purchase, while the component has been used under the conditions and in the manner specified by its original manufacturer. Keep in mind these off-road units are built for recreational use only. Your claim may be denied under the following circumstances:
Misuse or abuse of the vehicle, i.e.
Jumping
Stunt riding
Modification of any kind
Racing
Riding at constant wide open throttle (over revving the engine)
Unit is used as a rental
Damage is caused by an accident
Product is used in a manner that it is not designed for
Rider abuse
Improper adjustment\operation of the clutch, i.e. dragging, causing premature burning of the
friction plates
Improper adjustment\operation of brakes. Driving with parking brake on.
Improper gear engagement, i.e. engaging reverse will moving forward
Improper maintainance, i.e.
Lack of routine maintenance
Repairs performed improperly,
Use of incorrect lubricants
Improper initial set up
Use of aftermarket parts for repair
The following items are not covered: Tires, rims, body panels, fuses, forks, shocks, gaskets, light bulbs, seats, CV Boots, oil filter, air filter, fuel filter, filters, clutch wear parts, c

HANDLING OF WARRANTY CLAIMS:
FOR PARTS: All Parts warranty issues must be processed through https://motobuys.com/pages/part-request  or if directed by the manufacturer. You must produce a copy of your original invoice showing the model number, vehicle identification number and date of purchase on the invoice, as well as a copy of your Consumer Motor Vehicle Delivery Preparation and Inspection Form to warranty your product directly. All defective parts must be returned to MOTOBUYS.com or the manufacturer as directed for inspection and verification of defect. MOTOBUYS.com reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.
FOR ENGINES: All Engine warranty issues must be processed through MOTOBUYS.com or if directed through the manufacturer of the unit purchased. In ether case, after obtaining an RMA number from MOTOBUYS.com, you will be provided with a return shipping label. The motor must be removed from the vehicle, safely packaged and shipped to our repair facility located at the address listed on the shipping label. MOTOBUYS.com or the manufacturer reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.
