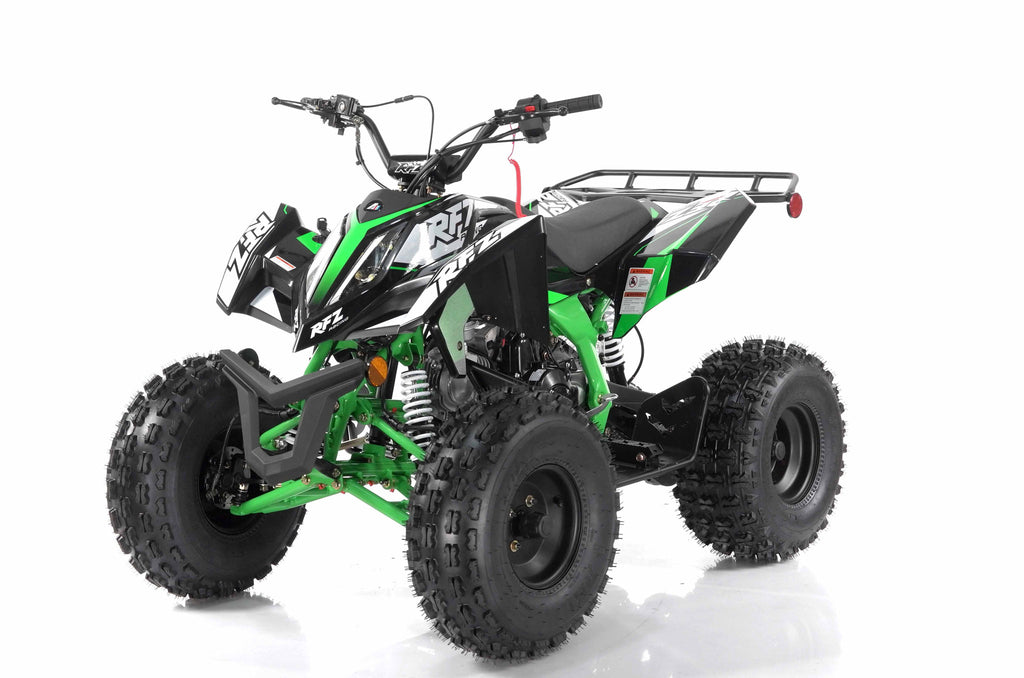

Apollo Falcon X 125 Youth Quad, Automatic with Reverse, Front and rear hydraulic brakes
*Some large items may require special delivery. May have shipping surcharge on remote area.
- Largest online dealer for industry leading brands of TrailMaster, Icebear and RPS
- Lifetime Technical Support - Free and Based in the US. Click here to get started
- One-Year Engine Warranty
- Authentic Customer Product Reviews
- Safe and Easy Online Shopping Experience

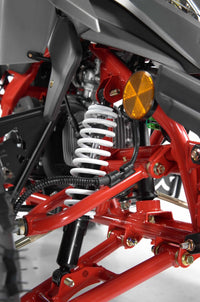

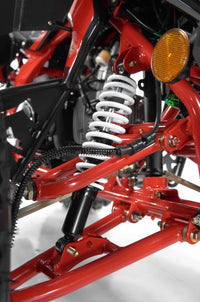

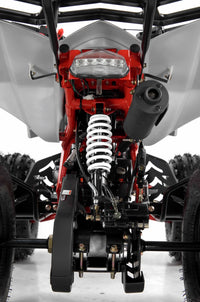

Apollo's new 125 Kids ATV is durable and is built to last. Color-matched upgraded suspension makes this outstanding youth ATV and head turner along with an outstanding ride. Reliable, with a low-maintenance 119cc four-stroke engine this unit will give your younger riders years of fun, With a max weight capacity of 225lbs even the bigger kids can hop on a ride safely. Dual front and rear Hydraulic disk brakes bring the machine to a quick stop. Equipped with dual arms and coil-over shocks up front and a single and rear mono-shock suspension allows for great control in the rough stuff.
The new Graphics package and exciting color-matched frame and suspension give this unit a great look.
revised 10/02/2023
Apollo's new 125 Kids ATV is durable and is built to last. Color-matched upgraded suspension makes this outstanding youth ATV and head turner along with an outstanding ride. Reliable, with a low-maintenance 119cc four-stroke engine this unit will give your younger riders years of fun, With a max weight capacity of 225lbs even the bigger kids can hop on a ride safely. Dual front and rear Hydraulic disk brakes bring the machine to a quick stop. Equipped with dual arms and coil-over shocks up front and a single and rear mono-shock suspension allows for great control in the rough stuff.
The new Graphics package and exciting color-matched frame and suspension give this unit a great look.
revised 10/02/2023
Model name | AGA-12A |
Vehicle Class | Y12+ class |
Overall dimensions (L×W×H) | 1495mm×970mm×1000mm |
Wheel base | 965mm |
front wheel distance | 795mm |
rear wheel distance | 680mm |
ground clearance | 125mm |
Seat height | 760mm |
Curb weight | 123kg |
rated load mass | 100kg |
Max speed | 55km/h |
minimum turning radius | 2500mm |
maximum gradability | 10° |
front brake type | front hydraulic brake |
rear brake type | rear hydraulic brake |
brake operation | Front hydraulic brake by hand , rear hydraulic brake by foot pedal |
front rim | steel |
rear rim | steel |
front tire size | 19×7-8 |
rear tire size | 18×9.5-8 |
front tire air pressure | 10P.S.I. |
rear tire air pressure | 10P.S.I. |
transmission | Chain |
packing size | 1310mm×760mm×660mm |
Net weight | 121kg |
Gross weight | 135.5kg |
Transmission type | Semi-automatic 1+R |
Engine type | 4 stroke,Single cylinder , air cooling |
displacement | 119.7cc |
Bore×Stroke | 52.4mmX55.5mm |
Max power | 5.5kW/7500rpm |
Max torque | 8.5N.m/5000rpm |
ignition | CDI |
start | electric start |
fuel grade | RQ-93 |
Lubrication | Pressure and splash lubrication |
Engine oil grade | SAE15W/40 |
Our Company Warranty Policies
Your satisfaction is our #1 goal. We strive to provide our customers with the highest level of customer service and support we can. We strongly suggest our customers read the following information thoroughly. If you have any questions about any of our or the manufacturers policies, please feel free to email us or call 1-877-601-5215.
If you need parts at the bottom of our home page you will find “Parts Request or https://motobuys.com/pages/part-request = simply fill out the form and click submit.
For Tech Support: https://motobuys.com/pages/technical-supports simply fill out the form and click submit
THE MANUFACTURERS WARRANTY COVERS PARTS, ENGINE ONLY FOR ALL PRODUCTS AS FOLLOWS:
OFF ROAD: ATV'S, UTV'S, BUGGIES, GO CARTS AND DIRT BIKES offer 3 MONTHS PARTS, 6 MONTHS ENGINE WARRANTY, MOTOBUYS.com will supply new or rebuilt replacement parts in exchange for defective parts for a period of 3(three) months, as well defective engines for a period of 6(six) months from the date of purchase at no charge.
Buyers will need basic repair & basic setup skills such as using tools; replacing nuts & bolts, filters, light bulbs, fluids, adjustments, etc. If you don’t have this ability we suggest using a mechanic to assist you with your needs. Our tech support Hotline is available to assist you.
THIS LIMITED WARRANTY COVERS THE FOLLOWING PARTS ONLY:
ENGINE: All internal lubricated parts, i.e. Pistons, piston rings, piston pins, connecting rods, rod bearings, camshaft, camshaft bearings, timing chain, crankshaft, crankshaft main bearings, oil pump, water pump, valves, valve springs, valve guides, valve seats, valve lifters and valve push rods. Additionally, the engine head and cylinder will only be covered if damage is caused solely as a result of the mechanical failure of one or more internal lubricated components listed above. (Broken gears any damage from outside impacted is not covered warranty)
ENGINE CASE: The Engine case itself will only be covered if the damage caused was solely as a result of the mechanical failure of one or more of the internal lubricated components listed above. (Broken gears any damage from outside impact is not covered warranty)
DRIVE SYSTEM: All internal lubricated parts contained within the drive axle housing case, i.e. differential, differential gears, drive shaft, drive axles, CV joints, axle bearings, reverse gears and output shafts. The drive axle housing as well as the reverse gearbox housing, if damaged solely as a result of the mechanical failure of one or more or the internal lubricated components contained the drive axle housing will be covered. (Any bent, broken, or damage by outside impact is not covered warranty)
FUEL SYSTEM: For carbureted vehicles; Carburetor, vacuum fuel pump, intake manifold, fuel tank and fuel petcock. For fuel injected vehicles; Fuel injectors, fuel pump, fuel rail and fuel pressure regulator.
ELECTRICAL: Stator, stator pickup, magneto, voltage regulator\ rectifier, CDI, starter relay\ starter solenoid, starter motor, coil, distributor assembly and injector relay.
COOLING SYSTEM: Radiator, radiator cap, thermostat, thermostat housing, temperature indicator switch, cooling fan motors; water pump and water pump housing.
BRAKES: Calipers, drum housings, drum brake linkage, reservoirs, rotors, and lines.
CHASSIS: Frame, swing arms, A-arms, steering controls, (if not caused by jumping or impact.)
TRANSMISSION (Automatic or Standard): All internal lubricated parts contained within the transmission case, i.e. flywheel, hydraulic shift linkage, kick start spindle, kick start secondary gear and transmission gears. The transmission case itself will be covered if the damage was solely as a result of mechanical failure of one or more of the internal lubricated components contained within the transmission case. (Improper shifting of gears by not coming to stop complete can cause damage to internal gears. (""This cause is not covered warranty"")
WHAT IS NOT COVERED: The following is a list of items not covered by the warranty policy. This list is not all inclusive and may be modified at any time. Batteries, Belts, Brakes and Brake Pads, Chains, Clutch, Foot peg mount, Hand Levers, Hoses, Lights, Mirrors, Plastic Body, Seats, Shocks, Spark Plugs, Tires, Transmission.
COVERAGE AND LIMITATIONS: Initial assembly and preparation must be preformed in accordance with the Consumer Motor Vehicle Delivery Preparation and Inspection Form that is provided by the manufacturer. Additionally, all work must be performed by a professional mechanic (i.e. engine repair shop, motorcycle shop, or local auto repair shop) or an authorized Dealer of the manufacturer to assure your vehicle is in good working condition. Upon completion, you must mail in the Consumer Motor Vehicle Delivery Preparation and Inspection Form signed by the technician that performed the service. You will need to provide proof of this service when filing a warranty claim, so (end user) must keep your receipts. Subject to the limitations stated in this agreement,
MOTOBUYS.com agrees (at its sole discretion) to replace a covered component if the covered component fails as a result of one or more of the internal lubricated parts within the component stated warranty period from the date of purchase, while the component has been used under the conditions and in the manner specified by its original manufacturer. Keep in mind these off-road units are built for recreational use only. Your claim may be denied under the following circumstances:
Misuse or abuse of the vehicle, i.e.
Jumping
Stunt riding
Modification of any kind
Racing
Riding at constant wide open throttle (over revving the engine)
Unit is used as a rental
Damage is caused by an accident
Product is used in a manner that it is not designed for
Rider abuse
Improper adjustment\operation of the clutch, i.e. dragging, causing premature burning of the
friction plates
Improper adjustment\operation of brakes. Driving with parking brake on.
Improper gear engagement, i.e. engaging reverse will moving forward
Improper maintenance, i.e.
Lack of routine maintenance
Repairs performed improperly,
Use of incorrect lubricants
Improper initial set up
Use of aftermarket parts for repair
The following items are not covered: Tires, rims, body panels, fuses, forks, shocks, gaskets, light bulbs, seats, CV Boots, oil filter, air filter, fuel filter, filters, clutch wear parts, cables, drive belt, chain, spark plug, any part made from rubber, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts and fasteners.
HANDLING OF WARRANTY CLAIMS:
FOR PARTS: All Parts warranty issues must be processed through https://motobuys.com/pages/part-request or if directed by the manufacturer. You must produce a copy of your original invoice showing the model number, vehicle identification number and date of purchase on the invoice, as well as a copy of your Consumer Motor Vehicle Delivery Preparation and Inspection Form to warranty your product directly. All defective parts must be returned to MOTOBUYS.com or the manufacturer as directed for inspection and verification of defect. MOTOBUYS.com reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.
FOR ENGINES: All Engine warranty issues must be processed through MOTOBUYS.com or if directed through the manufacturer of the unit purchased. In ether case, after obtaining an RMA number from MOTOBUYS.com, you will be provided with a return shipping label. The motor must be removed from the vehicle, safely packaged and shipped to our repair facility located at the address listed on the shipping label. MOTOBUYS.com or the manufacturer reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty
