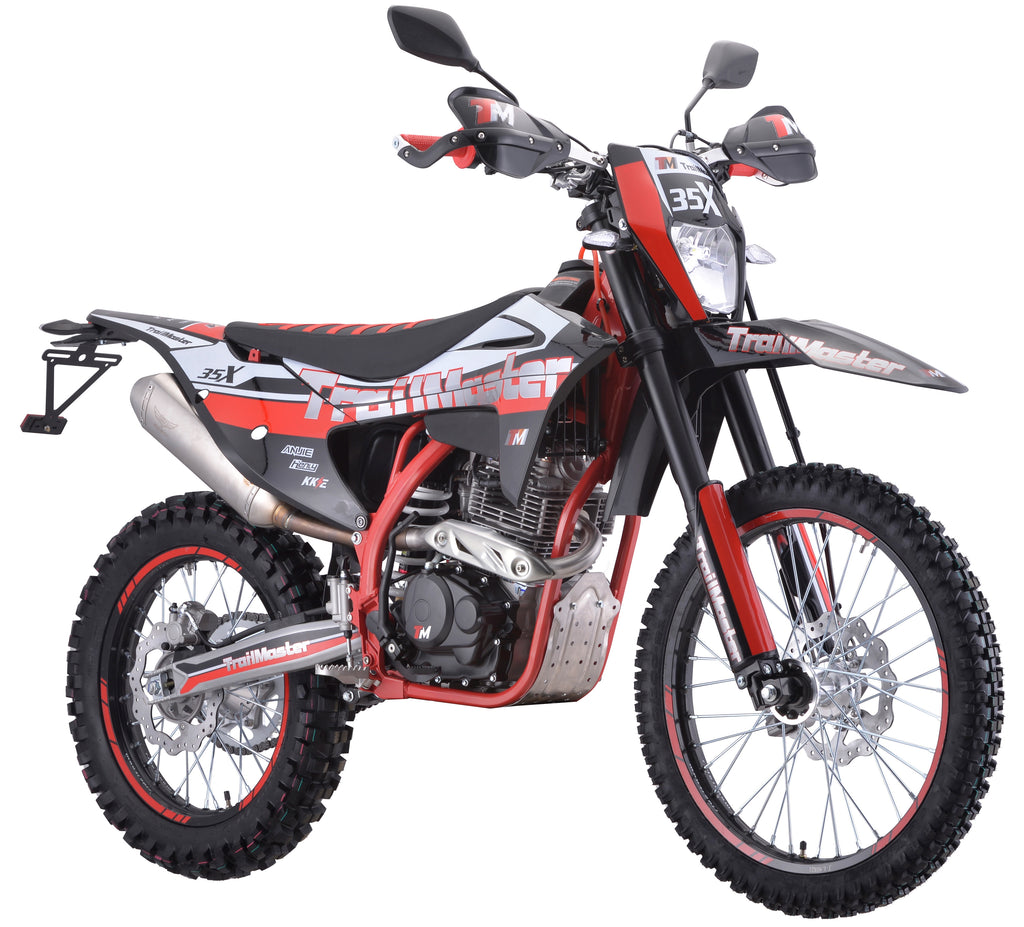

Trailmaster TM35X 250cc, 5 Speed Manual, LED Head Light, 21" front tire, 36 inch seat height, electric start Trailmaster The TM 35X‐250 is a great full size DUAL SPORT dirt bike. It has both a kick start and a new “ELECTRIC START”. It has a high performance 249cc 4 stroke 18.7hp engine with a top speed of around 55 MPH and a seat height of 36.2”. It is available in red, green, and orange colors. The TM35X features a 5 speed manual transmission with front and rear disc brakes, inverted front shock, and a lightweight steel tube frame! This version is also equipped with a digital speedometer, rearview mirrors, turn signals, rear brake light and license plate holder!The bikes full on motocross ergonomics with a 21” front / 18” rear wheel and race suspension system, make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic Digital CDI ignition makes key and kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 251 pounds, the 249cc engine can propel the motorcycle to speeds of 55+ miles per hour..   Trailmaster has a proven track record of over two decades of providing outstanding service to all of our customers.  The engineers at Trailamster have been working on these bikes for three years to get them to the market. They are here are they were worth the wait.  TM60 150cc 19-inch front tire, kick start, 34-inch seat height, LED head Light TM31 228cc 19-inch front tire Kick Start, 34-inch seat height  TM33 228cc 21inch front tire, 37-inch seat height, electric start TM35 250cc, 21-inch front tire, 37-inch seat height, LED headlight, Electric start TM36 300cc 21-inch front tire, 37-inch seat height, LED Headlight, electric start TM38 300cc, Japanese Carb, 37-inch seat Height, 6 speed  CA customers: this item is NOT CARB approved, but you may use on your private land. EPA Approved Legal in most of the states, Not for CA, NY, PA, VA, NJ, FL, LA. LEGAL FOR STREET & OFFROAD USE!   TECH SPECS   TM35X-250 Dirt Bike Specifications Category Details Engine Type ZS-CB250F, Single Cylinder, 4-Stroke, Air Cooling Displacement 249.9 ml Max Power 18.7 hp Max Torque 18/6500 N.m/r/min Compression Ratio 9.25:1 Shift Type Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears Bore and Stroke 72 x 61.4 mm Fuel Consumption ≤354(g/Kw.h) Start Type Electric & Kick Start Carburetor PE28 (EPA) Ignition Digital CDI Engine Oil SJ-10W/40 Transmission #520 & 112L Chain, FT: 13T/RR: 47T Sprocket Front Suspension Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel Rear Shock Φ12*450mm Spring Pre-load None-Adjustable Shock Front Wheel Aluminum Rim-WT Printing, DCA Hub, FT: 1.6 x 21 Rear Wheel Aluminum Rim-WT Printing, DCA Hub, RR: 2.15 x 18 Front Tires 80/100-21 Rear Tires 110/100-18 Front Brake Dual Piston Caliper, 240mm Disc Rear Brake Single Piston Caliper, 240mm Disc Seat Ribbed TrailMaster Seat Headlight LED Fairings GS style New Fairings Handguard Aluminum Bracket Version Frame Lightweight Steel Hexagon Tube Swing-Arm High Strength Steel, L=560mm Handle Bar Tapered Aluminum #6061 Overall Size 80.3"x32.1"x48.4" Packing Size 67.8"x17.7"x34.3" Wheel Base 53 inch Seat Height 36.2 inch Ground Clearance 12.2 inch Fuel Capacity 1.72G Net Weight 251 lbs Gross Weight 291 lbs   WARRANTY THE MANUFACTURERS WARRANTY COVERS PARTS, ENGINE ONLY FOR ALL PRODUCTS AS FOLLOWS:OFF ROAD: ATV'S, UTV'S, BUGGIES, GO CARTS AND DIRT BIKES offer 3 MONTHS PARTS, 6 MONTHS ENGINE WARRANTY, MOTOBUYS.com will supply new or rebuilt replacement parts in exchange for defective parts for a period of 3(three) months, as well defective engines for a period of 6(six) months from the date of purchase at no charge.Buyers will need basic repair & basic setup skills such as using tools; replacing nuts & bolts, filters, light bulbs, fluids, adjustments, etc. If you don’t have this ability we suggest using a mechanic to assist you with your needs. Our tech support Hotline is available to assist you.THIS LIMITED WARRANTY COVERS THE FOLLOWING PARTS ONLY:ENGINE: All internal lubricated parts, i.e. Pistons, piston rings, piston pins, connecting rods, rod bearings, camshaft, camshaft bearings, timing chain, crankshaft, crankshaft main bearings, oil pump, water pump, valves, valve springs, valve guides, valve seats, valve lifters and valve push rods. Additionally, the engine head and cylinder will only be covered if damage is caused solely as a result of the mechanical failure of one or more internal lubricated components listed above. (Broken gears any damage from outside impacted is not covered warranty)ENGINE CASE: The Engine case itself will only be covered if the damage caused was solely as a result of the mechanical failure of one or more of the internal lubricated components listed above. (Broken gears any damage from outside impact is not covered warranty)DRIVE SYSTEM: All internal lubricated parts contained within the drive axle housing case, i.e. differential, differential gears, drive shaft, drive axles, CV joints, axle bearings, reverse gears and output shafts. The drive axle housing as well as the reverse gearbox housing, if damaged solely as a result of the mechanical failure of one or more or the internal lubricated components contained the drive axle housing will be covered. (Any bent, broken, or damage by outside impact is not covered warranty)FUEL SYSTEM: For carbureted vehicles; Carburetor, vacuum fuel pump, intake manifold, fuel tank and fuel petcock. For fuel injected vehicles; Fuel injectors, fuel pump, fuel rail and fuel pressure regulator.ELECTRICAL: Stator, stator pickup, magneto, voltage regulator\ rectifier, CDI, starter relay\ starter solenoid, starter motor, coil, distributor assembly and injector relay.COOLING SYSTEM: Radiator, radiator cap, thermostat, thermostat housing, temperature indicator switch, cooling fan motors; water pump and water pump housing.BRAKES: Calipers, drum housings, drum brake linkage, reservoirs, rotors, and lines.CHASSIS: Frame, swing arms, A-arms, steering controls, (if not caused by jumping or impact.)TRANSMISSION (Automatic or Standard): All internal lubricated parts contained within the transmission case, i.e. flywheel, hydraulic shift linkage, kick start spindle, kick start secondary gear and transmission gears. The transmission case itself will be covered if the damage was solely as a result of mechanical failure of one or more of the internal lubricated components contained within the transmission case. (Improper shifting of gears by not coming to stop complete can cause damage to internal gears. ("This cause is not covered warranty")WHAT IS NOT COVERED: The following is a list of items not covered by the warranty policy. This list is not all inclusive and may be modified at any time. Batteries, Belts, Brakes and Brake Pads, Chains, Clutch, Foot peg mount, Hand Levers, Hoses, Lights, Mirrors, Plastic Body, Seats, Shocks, Spark Plugs, Tires, Transmission.COVERAGE AND LIMITATIONS: Initial assembly and preparation must be preformed in accordance with the Consumer Motor Vehicle Delivery Preparation and Inspection Form that is provided by the manufacturer. Additionally, all work must be performed by a professional mechanic (i.e. engine repair shop, motorcycle shop, or local auto repair shop) or an authorized Dealer of the manufacturer to assure your vehicle is in good working condition. Upon completion, you must mail in the Consumer Motor Vehicle Delivery Preparation and Inspection Form signed by the technician that performed the service. You will need to provide proof of this service when filing a warranty claim, so (end user) must keep your receipts. Subject to the limitations stated in this agreement,MOTOBUYS.com agrees (at its sole discretion) to replace a covered component if the covered component fails as a result of one or more of the internal lubricated parts within the component stated warranty period from the date of purchase, while the component has been used under the conditions and in the manner specified by its original manufacturer. Keep in mind these off-road units are built for recreational use only. Your claim may be denied under the following circumstances:Misuse or abuse of the vehicle, i.e.JumpingStunt ridingModification of any kindRacingRiding at constant wide open throttle (over revving the engine)Unit is used as a rentalDamage is caused by an accidentProduct is used in a manner that it is not designed forRider abuseImproper adjustment\operation of the clutch, i.e. dragging, causing premature burning of thefriction platesImproper adjustment\operation of brakes. Driving with parking brake on.Improper gear engagement, i.e. engaging reverse will moving forwardImproper maintenances, i.e.Lack of routine maintenanceRepairs performed improperly,Use of incorrect lubricantsImproper initial set upUse of aftermarket parts for repairThe following items are not covered: Tires, rims, body panels, fuses, forks, shocks, gaskets, light bulbs, seats, CV Boots, oil filter, air filter, fuel filter, filters, clutch wear parts, cables, drive belt, chain, spark plug, any part made from rubber, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts and fasteners.HANDLING OF WARRANTY CLAIMS:FOR PARTS: All Parts warranty issues must be processed through https://motobuys.com/pages/part-request  or if directed by the manufacturer. You must produce a copy of your original invoice showing the model number, vehicle identification number and date of purchase on the invoice, as well as a copy of your Consumer Motor Vehicle Delivery Preparation and Inspection Form to warranty your product directly. All defective parts must be returned to MOTOBUYS.com or the manufacturer as directed for inspection and verification of defect. MOTOBUYS.com reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.FOR ENGINES: All Engine warranty issues must be processed through MOTOBUYS.com or if directed through the manufacturer of the unit purchased. In ether case, after obtaining an RMA number from MOTOBUYS.com, you will be provided with a return shipping label. The motor must be removed from the vehicle, safely packaged and shipped to our repair facility located at the address listed on the shipping label. MOTOBUYS.com or the manufacturer reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty Documents TM-35X Brochure [TM-35X Brochure] Assemble Video
Trailmaster TM35X 250cc, 5 Speed Manual, LED Head Light, 21" front tire, 36 inch seat height, electric start

Trailmaster TM35X 250cc, 5 Speed Manual, LED Head Light, 21" front tire, 36 inch seat height, electric start

In Stock
MSRP: $2,399.00
$2,249.00
SAVE:$150.00
Free Shipping*
Free Shipping*
All Financing Options at MotoBuys Learn More

GIFT IDEA SALE - Kids & Youth

Save $25 on $1,000 with code [SAVE25]

Save $50 on $2,000 with code [SAVE50]

Save $100 on $3,000 with code [SAVE100]

*Some large items may require special delivery. May have shipping surcharge on remote area.

Why choose Motobuys.com?
  • Top 1 Trailmaster Online Dealer in the US
  • Lifetime US-Based Technical Support for Free
  • One-Year Engine Warranties and Six-Month Parts Guarantees
  • Guaranteed Trailmaster Parts Availability
  • Authentic Customer Reviews Featured on Our Site
  • Found a Lower Price? Call 877-667-6289 to Match It
Local pickup is available for Dallas/DFW customers! Simply select 'Pick Up In Store' at the end of checkout and collect your order at our Motobuys Powersports Outlet

The TM 35X‐250 is a great full size DUAL SPORT dirt bike. It has both a kick start and a new “ELECTRIC START”. It has a high performance 249cc 4 stroke 18.7hp engine with a top speed of around 55 MPH and a seat height of 36.2”. It is available in red, green, and orange colors. The TM35X features a 5 speed manual transmission with front and rear disc brakes, inverted front shock, and a lightweight steel tube frame! This version is also equipped with a digital speedometer, rearview mirrors, turn signals, rear brake light and license plate holder!
The bikes full on motocross ergonomics with a 21” front / 18” rear wheel and race suspension system, make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic Digital CDI ignition makes key and kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 251 pounds, the 249cc engine can propel the motorcycle to speeds of 55+ miles per hour..

Trailmaster has a proven track record of over two decades of providing outstanding service to all of our customers.  The engineers at Trailamster have been working on these bikes for three years to get them to the market. They are here are they were worth the wait.

TM60 150cc 19-inch front tire, kick start, 34-inch seat height, LED head Light

TM31 228cc 19-inch front tire Kick Start, 34-inch seat height

TM33 228cc 21inch front tire, 37-inch seat height, electric start

TM35 250cc, 21-inch front tire, 37-inch seat height, LED headlight, Electric start

TM36 300cc 21-inch front tire, 37-inch seat height, LED Headlight, electric start

TM38 300cc, Japanese Carb, 37-inch seat Height, 6 speed

CA customers: this item is NOT CARB approved, but you may use on your private land.

EPA Approved Legal in most of the states, Not for CA, NY, PA, VA, NJ, FL, LA. LEGAL FOR STREET & OFFROAD USE!



The TM 35X‐250 is a great full size DUAL SPORT dirt bike. It has both a kick start and a new “ELECTRIC START”. It has a high performance 249cc 4 stroke 18.7hp engine with a top speed of around 55 MPH and a seat height of 36.2”. It is available in red, green, and orange colors. The TM35X features a 5 speed manual transmission with front and rear disc brakes, inverted front shock, and a lightweight steel tube frame! This version is also equipped with a digital speedometer, rearview mirrors, turn signals, rear brake light and license plate holder!
The bikes full on motocross ergonomics with a 21” front / 18” rear wheel and race suspension system, make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic Digital CDI ignition makes key and kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 251 pounds, the 249cc engine can propel the motorcycle to speeds of 55+ miles per hour..

Trailmaster has a proven track record of over two decades of providing outstanding service to all of our customers.  The engineers at Trailamster have been working on these bikes for three years to get them to the market. They are here are they were worth the wait.

TM60 150cc 19-inch front tire, kick start, 34-inch seat height, LED head Light

TM31 228cc 19-inch front tire Kick Start, 34-inch seat height

TM33 228cc 21inch front tire, 37-inch seat height, electric start

TM35 250cc, 21-inch front tire, 37-inch seat height, LED headlight, Electric start

TM36 300cc 21-inch front tire, 37-inch seat height, LED Headlight, electric start

TM38 300cc, Japanese Carb, 37-inch seat Height, 6 speed

CA customers: this item is NOT CARB approved, but you may use on your private land.

EPA Approved Legal in most of the states, Not for CA, NY, PA, VA, NJ, FL, LA. LEGAL FOR STREET & OFFROAD USE!





TM35X-250 Dirt Bike Specifications
Category Details
Engine Type ZS-CB250F, Single Cylinder, 4-Stroke, Air Cooling
Displacement 249.9 ml
Max Power 18.7 hp
Max Torque 18/6500 N.m/r/min
Compression Ratio 9.25:1
Shift Type Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears
Bore and Stroke 72 x 61.4 mm
Fuel Consumption ≤354(g/Kw.h)
Start Type Electric & Kick Start
Carburetor PE28 (EPA)
Ignition Digital CDI
Engine Oil SJ-10W/40
Transmission #520 & 112L Chain, FT: 13T/RR: 47T Sprocket
Front Suspension Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel
Rear Shock Φ12*450mm Spring Pre-load None-Adjustable Shock
Front Wheel Aluminum Rim-WT Printing, DCA Hub, FT: 1.6 x 21
Rear Wheel Aluminum Rim-WT Printing, DCA Hub, RR: 2.15 x 18
Front Tires 80/100-21
Rear Tires 110/100-18
Front Brake Dual Piston Caliper, 240mm Disc
Rear Brake Single Piston Caliper, 240mm Disc
Seat Ribbed TrailMaster Seat
Headlight LED
Fairings GS style New Fairings
Handguard Aluminum Bracket Version
Frame Lightweight Steel Hexagon Tube
Swing-Arm High Strength Steel, L=560mm
Handle Bar Tapered Aluminum #6061
Overall Size 80.3"x32.1"x48.4"
Packing Size 67.8"x17.7"x34.3"
Wheel Base 53 inch
Seat Height 36.2 inch
Ground Clearance 12.2 inch
Fuel Capacity 1.72G
Net Weight 251 lbs
Gross Weight 291 lbs
