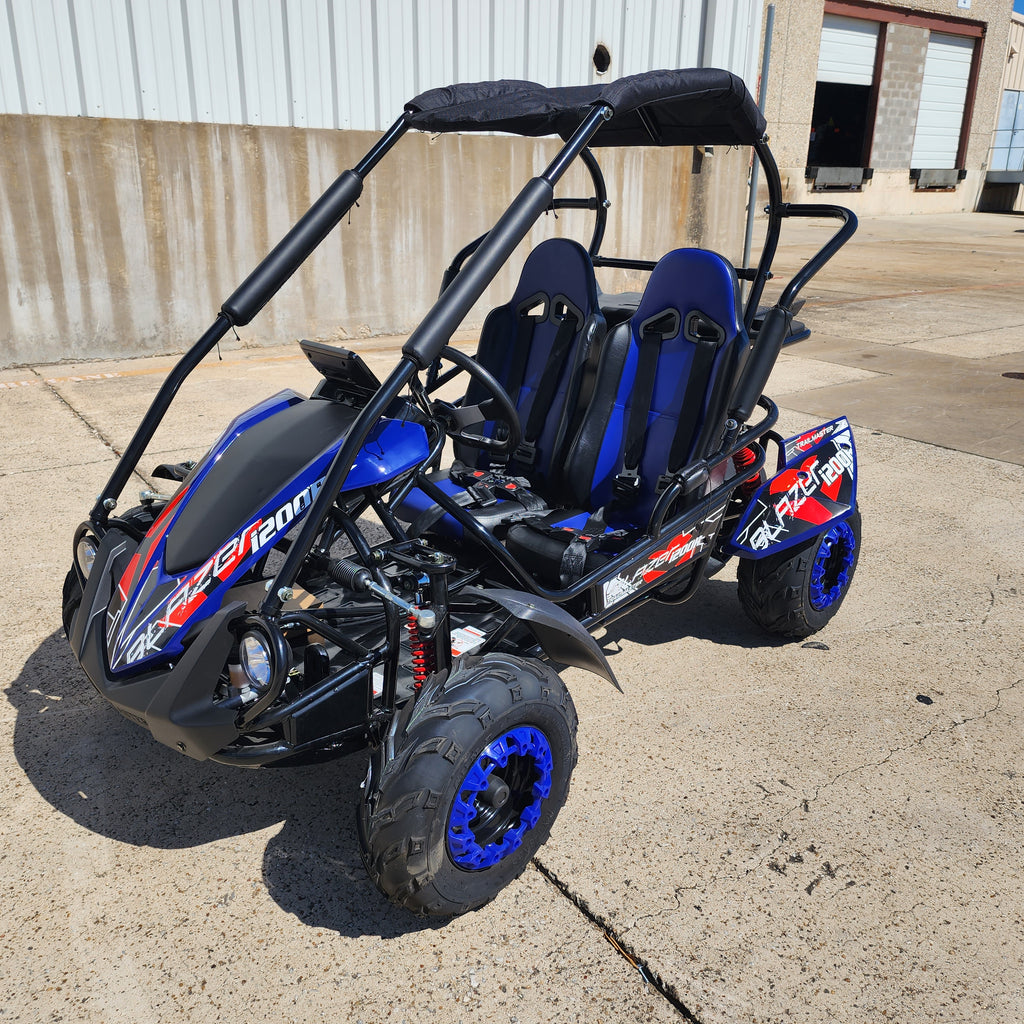

Trailmaster Blazer i200R, All Electric, 48 Volt max, Lithium Battery Pack , Up to 36 Mile range, 3 forward speeds

Great news! The long wait is over, TrailMaster is proud to announce US’s first Lithium battery mid-size go kart has arrived: the Blazer i200R! Youth cart ages 10 to 14.

Built on the same rugged off road frame as the gas powered Blazer 200R.  Features include dual A Arms, coil over shocks, disk brakes.  Adjustable high back seats with 5 point safety harness.

This Blazer i200R equips with 60V 1.8KW electric motor and 48V 29Ah lithium battery that has the output power of 1.4 Kw.

This fully automatic with reverse Blazer i200R offers 2 forward driving mode: with “D” mode top speed 13M/h; with “S” mode top speed at 27M/h; Full charge can go up to 36 miles.

CA customers: this item is NOT CARB approved, but you may use on your private land.

Battery: Lithium

Battery Weight: 14 lbs

Nominal Voltage: 48V

Rated Capacity 29Ah

Charging Temperature Range: 32 °F to 115 °F

Storage Temperature Range: 14 °F  to 115 °F

Cycle Life: Cycle to 60% at normal temperature, 100% DOD >= 600 times

Charging Time: 9h

Range:36 miles max depending on weight, speed and driving conditions.

Battery Warranty: 2 Year Limited warranty

               Electric Motor Information

Service Voltage: 60V

Rated Power: 1.8KW

Output Power: 1.4KW

Rated Speed: 4350RPM

Rated Current: 33A

Rated Torque: 4Nm

Max Torque: 87Nm/450A

Current limit: 75A

                 General Information

Suspension, F / R: Double A-arm / Double Oil Damped Shock

Brakes: Rear Hydraulic brake, Disc

Tires, F / R: 16x6-8 / 16x7-8

Weight, G.W. / N.W.: 435 / 352 lbs

Max load: 440 lbs

Driving Mode: R-N-D-S

Max speed: 15mph on “D” mode; 27 mph on “S” mode

                 Dimension Information

Wheelbase: 48.4 inches

Height to seat: 10.2 inches

Min ground clearance: 2.8 inches

Pedal to seat back distance: 34-39 inches

OA L x W x H: 67x44x51.2 inches

Crate size: 70X44X26 inches

Configurations And Specifications Subject to Change Without Notice. “BV POWERSPORTS, LLC”

Key features:

Powered by 48V, 29Ah Lithium battery

Digital LED monitor

Fully automatic with reverse

Driver has to hit brake in order to engage throttle pedal for safety

Offers two driving mode: with “D” mode top speed only 15M/h; with “S” mode top speed 27M/h

Strong low-end torque and able to climb 20 degrees slope

Driving range up to 36 miles

Canopy top

5-Point safety harness seatbelt

LED headlight

Horn

All-wheel fenders

Big tires: F / R: 16x6-8 / 16x7-8

Rack and pinion steering wheel

Hydraulic disc brake

Padding over roll cage

Individual sporting seats

Adjustable driver seat: pedal to seat back adjustable from 34” to 39”

Maintenance tips:

1. If putting kart to storage, should turn off battery switch located above right rear axle close to the wheel.
2. Battery should be charged every two months if not in use.

Climbing ability: 20 degrees
