Trailmaster TM33 223cc Dirt Bike. LED Head Light, Manual 5 speed, 21 inch front tire, 37 inch seat height Trailmaster The all-new TM-33 223cc Pit/Dirt bike is the newest and most powerful and exciting off-road option. 19-inch front tire with a 37-inch seat height. Electric Start This all-new 223cc full-size dirt bike is the most powerful bike in its class. The larger frame and taller seat, along with fully adjustable shocks, make this a perfect fit for large riders.        The TM-33 is powered air-cooled, 4-stroke, 223cc air-cooled 16 HP engine,  and features electric and kick start, 5-speed manual transmission. It also has a strong Central Tube, High-Strength Steel Frame.  Dual Piston Caliper, 240mm Disc front brake with vented rotors for maximum braking power. You also get 910 mm Inverted Hydraulic Forks with a full 150mm of Travel for ultimate riding. Main Features: Powerful 4 stroke 223cc air-cooled 16HP engine Electric and kick start,  5 speed manual clutch Central Tube High Strength Steel Frame Large frame size: 86.6"X33.9"49.2", same size frame as TM36 59“ wheelbase and 37” seat high Front tire 21”/Rear Tire 18” Dual Piston Caliper, 240mm Disc front brake 910mm Inverted Hydraulic Forks, 150mm Travel 460mm Spring Pre-load None-Adjustable Shock LED Headlight NOW EQUIPPED WITH LED HEADLIGHT Electric start is a feature that is usually only available in larger much more expensive bikes.  Only the highest quality engine components are used in the air-cooled engine TrailMaster has a proven track record for over two decades providing outstanding service to all of our customers.  The engineers at Trailmaster have been working on these bikes for three years to get them to the market. They are here are they were worth the wait.  Not CA Legal, but may be used on private land. TM60 150cc 19-inch front tire, kick start, 34-inch seat height, LED head Light TM31 228cc 19-inch front tire Kick Start, 34-inch seat height  TM33 228cc 21inch front tire, 37-inch seat height, electric start TM35 250cc, 21-inch front tire, 37-inch seat height, LED headlight, Electric start TM36 300cc 21-inch front tire, 37-inch seat height, LED Headlight, electric start TM38 300cc, Japanese Carb, 37-inch seat Height, 6 speed  TrailMaster Dirt Bike Model Driver group Size data Engine Transmission Main Features   max.weight Wheel Base Seat height engine size Starting clutch TiresFront / Rear TM10 150LB 39.37'' 24.41'' 110cc Kick Start Automatic Clutch ,N-1-2-3-4 2.5x10 2.5x10 TM11 150LB 39.37'' 24.41'' 110cc Electric Automatic clutch, One gear 2.5x10 2.5x10 TM15 150LB 40'' 24.4'' 110cc Kick & Electric Start  Automatic Clutch ,N-1-2-3-4 2.75x12 3x10 TM21 170LB 41.54'' 29.13'' 125cc Kick Start Automatic Clutch ,N-1-2-3-4 60/100-14 80/100-12 TM22 170LB 41.54'' 29.13'' 125cc Kick Start Manual Clutch, N-1-2-3-4 60/100-14 80/100-12 TM23 170LB 41.54'' 29.13'' 125cc Kick & Electric Start  Automatic Clutch ,N-1-2-3-4 60/100-14 80/100-12 TM24 170LB 42.3'' 32.7'' 125cc Kick Start Manual Clutch, N-1-2-3-4 70/100-17 90/100-14 TM27 200LB 49.8'' 33.5'' 125cc Kick Start Manual Clutch, N-1-2-3-4 70/100-17 90/100-14 TM29 200LB 49.8'' 33.5'' 125cc Kick & Electric Start  Manual Clutch, N-1-2-3-5 70/100-17 90/100-14 TM31 53.1'' 34.6'' 223cc Kick & Electric Start  Manual Wet Multi-Plate, 5gears 70/100-19 90/100-16 TM33 59'' 37'' 223cc Kick & Electric Start  Manual Wet Multi-Plate, 5gears 80/100-21 110/100-18 TM36 59'' 37'' 279cc Kick & Electric Start  Manual Wet Multi-Plate, 5gears 80/100-21 110/100-18 TM38 59'' 37'' 298cc w/ balance shaft Kick & Electric Start  Manual Wet Multi-Plate, 5gears 80/100-21 110/100-18     TECH SPECS POWER SYSTEM Engine Type ZSCB250D-G, Single Cylinder, 4-Stroke, Air Cooled Displacement 223 ml Max Power 12/7000 kw/r/min, 16 HP Max Torque 17.5/5500 N.m/r/min Compression Ratio 9.3~9.9:1 Shift Type Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears Bore and Stroke 65.5 x 62.2 mm Min. Fuel Consumption ≤354(g/Kw.h) Start Type Electric & Kick Start Carburetor PZ28 Ignition Digital CDI Transmission #520 Chain, FT: 13T/RR: 47T Sprocket PERFORMANCE Front Suspension Φ51*Φ54-910mm Inverted Hydraulic Forks, 150mm Travel Rear Shock 460mm Spring Pre-load None-Adjustable Shock Front Wheel Aluminum Rim, FT: 1.60 x 21 Rear Wheel Aluminum Rim, RR: 2.15 x 18 Front Tires 80/100-21 Rear Tires 110/100-18 Front Brake Dual Piston Caliper, 240mm Disc Rear Brake Single Piston Caliper, 240mm Disc DETAILS Frame Lightweight ,Steel Tube Frame Swing-Arm Tube High Strength Steel Swingarm; L=560mm Handle Bar Tapered Aluminum  #6061 Overall Size 86.6"X33.9"49.2"/2200x860x1250mm Packing Size 67.5"X18"X34"/1715x450x860mm Wheel Base 59"/1500 mm Seat Height 37"/940 mm Ground Clearance 11.8"/300 mm Fuel Capacity 6.5 L / 1.72 Gal. N.W 234lbs/117KG G.W 326lbs/148KG   Warranty Our Company Warranty PoliciesYour satisfaction is our #1 goal. We strive to provide our customers with the highest level of customer service and support we can. We strongly suggest our customers read the following information thoroughly. If you have any questions about any of our or the manufacturers policies, please feel free to email us or call 1-877-667-6289.If you need parts at the bottom of our home page you will find “Parts Request or https://motobuys.com/pages/part-request = simply fill out the form and click submit.For Tech Support: https://motobuys.com/pages/technical-supports simply fill out the form and click submitTHE MANUFACTURERS WARRANTY COVERS PARTS, ENGINE ONLY FOR ALL PRODUCTS AS FOLLOWS:OFF ROAD: ATV'S, UTV'S, BUGGIES, GO CARTS AND DIRT BIKES offer 3 MONTHS PARTS, 6 MONTHS ENGINE WARRANTY, MOTOBUYS.com will supply new or rebuilt replacement parts in exchange for defective parts for a period of 3(three) months, as well defective engines for a period of 6(six) months from the date of purchase at no charge.Buyers will need basic repair & basic setup skills such as using tools; replacing nuts & bolts, filters, light bulbs, fluids, adjustments, etc. If you don’t have this ability we suggest using a mechanic to assist you with your needs. Our tech support Hotline is available to assist you.THIS LIMITED WARRANTY COVERS THE FOLLOWING PARTS ONLY:ENGINE: All internal lubricated parts, i.e. Pistons, piston rings, piston pins, connecting rods, rod bearings, camshaft, camshaft bearings, timing chain, crankshaft, crankshaft main bearings, oil pump, water pump, valves, valve springs, valve guides, valve seats, valve lifters and valve push rods. Additionally, the engine head and cylinder will only be covered if damage is caused solely as a result of the mechanical failure of one or more internal lubricated components listed above. (Broken gears any damage from outside impacted is not covered warranty)ENGINE CASE: The Engine case itself will only be covered if the damage caused was solely as a result of the mechanical failure of one or more of the internal lubricated components listed above. (Broken gears any damage from outside impact is not covered warranty)DRIVE SYSTEM: All internal lubricated parts contained within the drive axle housing case, i.e. differential, differential gears, drive shaft, drive axles, CV joints, axle bearings, reverse gears and output shafts. The drive axle housing as well as the reverse gearbox housing, if damaged solely as a result of the mechanical failure of one or more or the internal lubricated components contained the drive axle housing will be covered. (Any bent, broken, or damage by outside impact is not covered warranty)FUEL SYSTEM: For carbureted vehicles; Carburetor, vacuum fuel pump, intake manifold, fuel tank and fuel petcock. For fuel injected vehicles; Fuel injectors, fuel pump, fuel rail and fuel pressure regulator.ELECTRICAL: Stator, stator pickup, magneto, voltage regulator\ rectifier, CDI, starter relay\ starter solenoid, starter motor, coil, distributor assembly and injector relay.COOLING SYSTEM: Radiator, radiator cap, thermostat, thermostat housing, temperature indicator switch, cooling fan motors; water pump and water pump housing.BRAKES: Calipers, drum housings, drum brake linkage, reservoirs, rotors, and lines.CHASSIS: Frame, swing arms, A-arms, steering controls, (if not caused by jumping or impact.)TRANSMISSION (Automatic or Standard): All internal lubricated parts contained within the transmission case, i.e. flywheel, hydraulic shift linkage, kick start spindle, kick start secondary gear and transmission gears. The transmission case itself will be covered if the damage was solely as a result of mechanical failure of one or more of the internal lubricated components contained within the transmission case. (Improper shifting of gears by not coming to stop complete can cause damage to internal gears. (""This cause is not covered warranty"")WHAT IS NOT COVERED: The following is a list of items not covered by the warranty policy. This list is not all inclusive and may be modified at any time. Batteries, Belts, Brakes and Brake Pads, Chains, Clutch, Foot peg mount, Hand Levers, Hoses, Lights, Mirrors, Plastic Body, Seats, Shocks, Spark Plugs, Tires, Transmission.COVERAGE AND LIMITATIONS: Initial assembly and preparation must be preformed in accordance with the Consumer Motor Vehicle Delivery Preparation and Inspection Form that is provided by the manufacturer. Additionally, all work must be performed by a professional mechanic (i.e. engine repair shop, motorcycle shop, or local auto repair shop) or an authorized Dealer of the manufacturer to assure your vehicle is in good working condition. Upon completion, you must mail in the Consumer Motor Vehicle Delivery Preparation and Inspection Form signed by the technician that performed the service. You will need to provide proof of this service when filing a warranty claim, so (end user) must keep your receipts. Subject to the limitations stated in this agreement,MOTOBUYS.com agrees (at its sole discretion) to replace a covered component if the covered component fails as a result of one or more of the internal lubricated parts within the component stated warranty period from the date of purchase, while the component has been used under the conditions and in the manner specified by its original manufacturer. Keep in mind these off-road units are built for recreational use only. Your claim may be denied under the following circumstances:Misuse or abuse of the vehicle, i.e.JumpingStunt ridingModification of any kindRacingRiding at constant wide open throttle (over revving the engine)Unit is used as a rentalDamage is caused by an accidentProduct is used in a manner that it is not designed forRider abuseImproper adjustment\operation of the clutch, i.e. dragging, causing premature burning of thefriction platesImproper adjustment\operation of brakes. Driving with parking brake on.Improper gear engagement, i.e. engaging reverse will moving forwardImproper maintenances, i.e.Lack of routine maintenanceRepairs performed improperly,Use of incorrect lubricantsImproper initial set upUse of aftermarket parts for repairThe following items are not covered: Tires, rims, body panels, fuses, forks, shocks, gaskets, light bulbs, seats, CV Boots, oil filter, air filter, fuel filter, filters, clutch wear parts, cables, drive belt, chain, spark plug, any part made from rubber, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts and fasteners.HANDLING OF WARRANTY CLAIMS:FOR PARTS: All Parts warranty issues must be processed through https://motobuys.com/pages/part-request  or if directed by the manufacturer. You must produce a copy of your original invoice showing the model number, vehicle identification number and date of purchase on the invoice, as well as a copy of your Consumer Motor Vehicle Delivery Preparation and Inspection Form to warranty your product directly. All defective parts must be returned to MOTOBUYS.com or the manufacturer as directed for inspection and verification of defect. MOTOBUYS.com reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.FOR ENGINES: All Engine warranty issues must be processed through MOTOBUYS.com or if directed through the manufacturer of the unit purchased. In ether case, after obtaining an RMA number from MOTOBUYS.com, you will be provided with a return shipping label. The motor must be removed from the vehicle, safely packaged and shipped to our repair facility located at the address listed on the shipping label. MOTOBUYS.com or the manufacturer reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.

Trailmaster TM33 223cc Dirt Bike. LED Head Light, Manual 5 speed, 21 inch front tire, 37 inch seat height

MSRP: $2,499.00
$2,299.00
Free Standard Shipping*
In Stock

Order Before December 11 to Get by Christmas  (Not Guranteed)


Spending $1,000, using code [SAVE25] to save $25

Spending $2,000, using code [SAVE100] to save $100

Spending $3,000, using code [SAVE150] to save $150

Spending $4,000, using code [SAVE200] to save $200

Free 6 months Parts Extended Warranty on TrailMaster Products (up to $199)

*except large items requiring special delivery.

The all-new TM-33 223cc Pit/Dirt bike is the newest and most powerful and exciting off-road option. 19-inch front tire with a 37-inch seat height. Electric Start

This all-new 223cc full-size dirt bike is the most powerful bike in its class. The larger frame and taller seat, along with fully adjustable shocks, make this a perfect fit for large riders.

The TM-33 is powered air-cooled, 4-stroke, 223cc air-cooled 16 HP engine,  and features electric and kick start, 5-speed manual transmission. It also has a strong Central Tube, High-Strength Steel Frame.  Dual Piston Caliper, 240mm Disc front brake with vented rotors for maximum braking power.

You also get 910 mm Inverted Hydraulic Forks with a full 150mm of Travel for ultimate riding.

Main Features:

  • Powerful 4 stroke 223cc air-cooled 16HP engine
  • Electric and kick start,  5 speed manual clutch
  • Central Tube High Strength Steel Frame
  • Large frame size: 86.6"X33.9"49.2", same size frame as TM36
  • 59“ wheelbase and 37” seat high
  • Front tire 21”/Rear Tire 18”
  • Dual Piston Caliper, 240mm Disc front brake
  • 910mm Inverted Hydraulic Forks, 150mm Travel
  • 460mm Spring Pre-load None-Adjustable Shock
  • LED Headlight

NOW EQUIPPED WITH LED HEADLIGHT

Electric start is a feature that is usually only available in larger much more expensive bikes.  Only the highest quality engine components are used in the air-cooled engine

TrailMaster has a proven track record for over two decades providing outstanding service to all of our customers.  The engineers at Trailmaster have been working on these bikes for three years to get them to the market. They are here are they were worth the wait.

Not CA Legal, but may be used on private land.

TM60 150cc 19-inch front tire, kick start, 34-inch seat height, LED head Light

TM31 228cc 19-inch front tire Kick Start, 34-inch seat height

TM33 228cc 21inch front tire, 37-inch seat height, electric start

TM35 250cc, 21-inch front tire, 37-inch seat height, LED headlight, Electric start

TM36 300cc 21-inch front tire, 37-inch seat height, LED Headlight, electric start

TM38 300cc, Japanese Carb, 37-inch seat Height, 6 speed

TrailMaster Dirt Bike
Model Driver group Size data Engine Transmission Main Features
  max.weight Wheel Base Seat height engine size Starting clutch
Tires
Front / Rear
TM10 150LB 39.37'' 24.41'' 110cc Kick Start Automatic Clutch ,N-1-2-3-4 2.5x10 2.5x10
TM11 150LB 39.37'' 24.41'' 110cc Electric Automatic clutch, One gear 2.5x10 2.5x10
TM15 150LB 40'' 24.4'' 110cc Kick & Electric Start  Automatic Clutch ,N-1-2-3-4 2.75x12 3x10
TM21 170LB 41.54'' 29.13'' 125cc Kick Start Automatic Clutch ,N-1-2-3-4 60/100-14 80/100-12
TM22 170LB 41.54'' 29.13'' 125cc Kick Start Manual Clutch, N-1-2-3-4 60/100-14 80/100-12
TM23 170LB 41.54'' 29.13'' 125cc Kick & Electric Start  Automatic Clutch ,N-1-2-3-4 60/100-14 80/100-12
TM24 170LB 42.3'' 32.7'' 125cc Kick Start Manual Clutch, N-1-2-3-4 70/100-17 90/100-14
TM27 200LB 49.8'' 33.5'' 125cc Kick Start Manual Clutch, N-1-2-3-4 70/100-17 90/100-14
TM29 200LB 49.8'' 33.5'' 125cc Kick & Electric Start  Manual Clutch, N-1-2-3-5 70/100-17 90/100-14
TM31 53.1'' 34.6'' 223cc Kick & Electric Start  Manual Wet Multi-Plate, 5gears 70/100-19 90/100-16
TM33 59'' 37'' 223cc Kick & Electric Start  Manual Wet Multi-Plate, 5gears 80/100-21 110/100-18
TM36 59'' 37'' 279cc Kick & Electric Start  Manual Wet Multi-Plate, 5gears 80/100-21 110/100-18
TM38 59'' 37'' 298cc w/ balance shaft Kick & Electric Start  Manual Wet Multi-Plate, 5gears 80/100-21 110/100-18





    The all-new TM-33 223cc Pit/Dirt bike is the newest and most powerful and exciting off-road option. 19-inch front tire with a 37-inch seat height. Electric Start

    This all-new 223cc full-size dirt bike is the most powerful bike in its class. The larger frame and taller seat, along with fully adjustable shocks, make this a perfect fit for large riders.

    The TM-33 is powered air-cooled, 4-stroke, 223cc air-cooled 16 HP engine,  and features electric and kick start, 5-speed manual transmission. It also has a strong Central Tube, High-Strength Steel Frame.  Dual Piston Caliper, 240mm Disc front brake with vented rotors for maximum braking power.

    You also get 910 mm Inverted Hydraulic Forks with a full 150mm of Travel for ultimate riding.

    Main Features:

    • Powerful 4 stroke 223cc air-cooled 16HP engine
    • Electric and kick start,  5 speed manual clutch
    • Central Tube High Strength Steel Frame
    • Large frame size: 86.6"X33.9"49.2", same size frame as TM36
    • 59“ wheelbase and 37” seat high
    • Front tire 21”/Rear Tire 18”
    • Dual Piston Caliper, 240mm Disc front brake
    • 910mm Inverted Hydraulic Forks, 150mm Travel
    • 460mm Spring Pre-load None-Adjustable Shock
    • LED Headlight

    NOW EQUIPPED WITH LED HEADLIGHT

    Electric start is a feature that is usually only available in larger much more expensive bikes.  Only the highest quality engine components are used in the air-cooled engine

    TrailMaster has a proven track record for over two decades providing outstanding service to all of our customers.  The engineers at Trailmaster have been working on these bikes for three years to get them to the market. They are here are they were worth the wait.

    Not CA Legal, but may be used on private land.

    TM60 150cc 19-inch front tire, kick start, 34-inch seat height, LED head Light

    TM31 228cc 19-inch front tire Kick Start, 34-inch seat height

    TM33 228cc 21inch front tire, 37-inch seat height, electric start

    TM35 250cc, 21-inch front tire, 37-inch seat height, LED headlight, Electric start

    TM36 300cc 21-inch front tire, 37-inch seat height, LED Headlight, electric start

    TM38 300cc, Japanese Carb, 37-inch seat Height, 6 speed

    TrailMaster Dirt Bike
    Model Driver group Size data Engine Transmission Main Features
      max.weight Wheel Base Seat height engine size Starting clutch
    Tires
    Front / Rear
    TM10 150LB 39.37'' 24.41'' 110cc Kick Start Automatic Clutch ,N-1-2-3-4 2.5x10 2.5x10
    TM11 150LB 39.37'' 24.41'' 110cc Electric Automatic clutch, One gear 2.5x10 2.5x10
    TM15 150LB 40'' 24.4'' 110cc Kick & Electric Start  Automatic Clutch ,N-1-2-3-4 2.75x12 3x10
    TM21 170LB 41.54'' 29.13'' 125cc Kick Start Automatic Clutch ,N-1-2-3-4 60/100-14 80/100-12
    TM22 170LB 41.54'' 29.13'' 125cc Kick Start Manual Clutch, N-1-2-3-4 60/100-14 80/100-12
    TM23 170LB 41.54'' 29.13'' 125cc Kick & Electric Start  Automatic Clutch ,N-1-2-3-4 60/100-14 80/100-12
    TM24 170LB 42.3'' 32.7'' 125cc Kick Start Manual Clutch, N-1-2-3-4 70/100-17 90/100-14
    TM27 200LB 49.8'' 33.5'' 125cc Kick Start Manual Clutch, N-1-2-3-4 70/100-17 90/100-14
    TM29 200LB 49.8'' 33.5'' 125cc Kick & Electric Start  Manual Clutch, N-1-2-3-5 70/100-17 90/100-14
    TM31 53.1'' 34.6'' 223cc Kick & Electric Start  Manual Wet Multi-Plate, 5gears 70/100-19 90/100-16
    TM33 59'' 37'' 223cc Kick & Electric Start  Manual Wet Multi-Plate, 5gears 80/100-21 110/100-18
    TM36 59'' 37'' 279cc Kick & Electric Start  Manual Wet Multi-Plate, 5gears 80/100-21 110/100-18
    TM38 59'' 37'' 298cc w/ balance shaft Kick & Electric Start  Manual Wet Multi-Plate, 5gears 80/100-21 110/100-18





      POWER SYSTEM

      Engine Type

      ZSCB250D-G, Single Cylinder, 4-Stroke, Air Cooled

      Displacement

      223 ml

      Max Power

      12/7000 kw/r/min, 16 HP

      Max Torque

      17.5/5500 N.m/r/min

      Compression Ratio

      9.3~9.9:1

      Shift Type

      Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears

      Bore and Stroke

      65.5 x 62.2 mm

      Min. Fuel Consumption

      ≤354(g/Kw.h)

      Start Type

      Electric & Kick Start

      Carburetor

      PZ28

      Ignition

      Digital CDI

      Transmission

      #520 Chain, FT: 13T/RR: 47T Sprocket

      PERFORMANCE

      Front Suspension

      Φ51*Φ54-910mm Inverted Hydraulic Forks, 150mm Travel

      Rear Shock

      460mm Spring Pre-load None-Adjustable Shock

      Front Wheel

      Aluminum Rim, FT: 1.60 x 21

      Rear Wheel

      Aluminum Rim, RR: 2.15 x 18

      Front Tires

      80/100-21

      Rear Tires

      110/100-18

      Front Brake

      Dual Piston Caliper, 240mm Disc

      Rear Brake

      Single Piston Caliper, 240mm Disc

      DETAILS

      Frame

      Lightweight ,Steel Tube Frame

      Swing-Arm

      Tube High Strength Steel Swingarm; L=560mm

      Handle Bar

      Tapered Aluminum  #6061

      Overall Size

      86.6"X33.9"49.2"/2200x860x1250mm

      Packing Size

      67.5"X18"X34"/1715x450x860mm

      Wheel Base

      59"/1500 mm

      Seat Height

      37"/940 mm

      Ground Clearance

      11.8"/300 mm

      Fuel Capacity

      6.5 L / 1.72 Gal.

      N.W

      234lbs/117KG

      G.W

      326lbs/148KG



      Our Company Warranty Policies
      Your satisfaction is our #1 goal. We strive to provide our customers with the highest level of customer service and support we can. We strongly suggest our customers read the following information thoroughly. If you have any questions about any of our or the manufacturers policies, please feel free to email us or call 1-877-667-6289.
      If you need parts at the bottom of our home page you will find “Parts Request or https://motobuys.com/pages/part-request = simply fill out the form and click submit.
      For Tech Support: https://motobuys.com/pages/technical-supports simply fill out the form and click submit
      THE MANUFACTURERS WARRANTY COVERS PARTS, ENGINE ONLY FOR ALL PRODUCTS AS FOLLOWS:
      OFF ROAD: ATV'S, UTV'S, BUGGIES, GO CARTS AND DIRT BIKES offer 3 MONTHS PARTS, 6 MONTHS ENGINE WARRANTY, MOTOBUYS.com will supply new or rebuilt replacement parts in exchange for defective parts for a period of 3(three) months, as well defective engines for a period of 6(six) months from the date of purchase at no charge.
      Buyers will need basic repair & basic setup skills such as using tools; replacing nuts & bolts, filters, light bulbs, fluids, adjustments, etc. If you don’t have this ability we suggest using a mechanic to assist you with your needs. Our tech support Hotline is available to assist you.
      THIS LIMITED WARRANTY COVERS THE FOLLOWING PARTS ONLY:
      ENGINE: All internal lubricated parts, i.e. Pistons, piston rings, piston pins, connecting rods, rod bearings, camshaft, camshaft bearings, timing chain, crankshaft, crankshaft main bearings, oil pump, water pump, valves, valve springs, valve guides, valve seats, valve lifters and valve push rods. Additionally, the engine head and cylinder will only be covered if damage is caused solely as a result of the mechanical failure of one or more internal lubricated components listed above. (Broken gears any damage from outside impacted is not covered warranty)
      ENGINE CASE: The Engine case itself will only be covered if the damage caused was solely as a result of the mechanical failure of one or more of the internal lubricated components listed above. (Broken gears any damage from outside impact is not covered warranty)
      DRIVE SYSTEM: All internal lubricated parts contained within the drive axle housing case, i.e. differential, differential gears, drive shaft, drive axles, CV joints, axle bearings, reverse gears and output shafts. The drive axle housing as well as the reverse gearbox housing, if damaged solely as a result of the mechanical failure of one or more or the internal lubricated components contained the drive axle housing will be covered. (Any bent, broken, or damage by outside impact is not covered warranty)
      FUEL SYSTEM: For carbureted vehicles; Carburetor, vacuum fuel pump, intake manifold, fuel tank and fuel petcock. For fuel injected vehicles; Fuel injectors, fuel pump, fuel rail and fuel pressure regulator.
      ELECTRICAL: Stator, stator pickup, magneto, voltage regulator\ rectifier, CDI, starter relay\ starter solenoid, starter motor, coil, distributor assembly and injector relay.
      COOLING SYSTEM: Radiator, radiator cap, thermostat, thermostat housing, temperature indicator switch, cooling fan motors; water pump and water pump housing.
      BRAKES: Calipers, drum housings, drum brake linkage, reservoirs, rotors, and lines.
      CHASSIS: Frame, swing arms, A-arms, steering controls, (if not caused by jumping or impact.)
      TRANSMISSION (Automatic or Standard): All internal lubricated parts contained within the transmission case, i.e. flywheel, hydraulic shift linkage, kick start spindle, kick start secondary gear and transmission gears. The transmission case itself will be covered if the damage was solely as a result of mechanical failure of one or more of the internal lubricated components contained within the transmission case. (Improper shifting of gears by not coming to stop complete can cause damage to internal gears. (""This cause is not covered warranty"")


      WHAT IS NOT COVERED: The following is a list of items not covered by the warranty policy. This list is not all inclusive and may be modified at any time. Batteries, Belts, Brakes and Brake Pads, Chains, Clutch, Foot peg mount, Hand Levers, Hoses, Lights, Mirrors, Plastic Body, Seats, Shocks, Spark Plugs, Tires, Transmission.
      COVERAGE AND LIMITATIONS: Initial assembly and preparation must be preformed in accordance with the Consumer Motor Vehicle Delivery Preparation and Inspection Form that is provided by the manufacturer. Additionally, all work must be performed by a professional mechanic (i.e. engine repair shop, motorcycle shop, or local auto repair shop) or an authorized Dealer of the manufacturer to assure your vehicle is in good working condition. Upon completion, you must mail in the Consumer Motor Vehicle Delivery Preparation and Inspection Form signed by the technician that performed the service. You will need to provide proof of this service when filing a warranty claim, so (end user) must keep your receipts. Subject to the limitations stated in this agreement,
      MOTOBUYS.com agrees (at its sole discretion) to replace a covered component if the covered component fails as a result of one or more of the internal lubricated parts within the component stated warranty period from the date of purchase, while the component has been used under the conditions and in the manner specified by its original manufacturer. Keep in mind these off-road units are built for recreational use only. Your claim may be denied under the following circumstances:
      Misuse or abuse of the vehicle, i.e.
      Jumping
      Stunt riding
      Modification of any kind
      Racing
      Riding at constant wide open throttle (over revving the engine)
      Unit is used as a rental
      Damage is caused by an accident
      Product is used in a manner that it is not designed for
      Rider abuse
      Improper adjustment\operation of the clutch, i.e. dragging, causing premature burning of the
      friction plates
      Improper adjustment\operation of brakes. Driving with parking brake on.
      Improper gear engagement, i.e. engaging reverse will moving forward
      Improper maintenances, i.e.
      Lack of routine maintenance
      Repairs performed improperly,
      Use of incorrect lubricants
      Improper initial set up
      Use of aftermarket parts for repair
      The following items are not covered: Tires, rims, body panels, fuses, forks, shocks, gaskets, light bulbs, seats, CV Boots, oil filter, air filter, fuel filter, filters, clutch wear parts, cables, drive belt, chain, spark plug, any part made from rubber, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts and fasteners.
      HANDLING OF WARRANTY CLAIMS:
      FOR PARTS: All Parts warranty issues must be processed through https://motobuys.com/pages/part-request  or if directed by the manufacturer. You must produce a copy of your original invoice showing the model number, vehicle identification number and date of purchase on the invoice, as well as a copy of your Consumer Motor Vehicle Delivery Preparation and Inspection Form to warranty your product directly. All defective parts must be returned to MOTOBUYS.com or the manufacturer as directed for inspection and verification of defect. MOTOBUYS.com reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.
      FOR ENGINES: All Engine warranty issues must be processed through MOTOBUYS.com or if directed through the manufacturer of the unit purchased. In ether case, after obtaining an RMA number from MOTOBUYS.com, you will be provided with a return shipping label. The motor must be removed from the vehicle, safely packaged and shipped to our repair facility located at the address listed on the shipping label. MOTOBUYS.com or the manufacturer reserves the right to decline any warranty claim based on the criteria listed in the COVERAGE AND LIMITATIONS portion of this warranty.

      Customer Reviews

      Based on 3 reviews
      100%
      (3)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      V
      Varian H.

      Great

      G
      Gerardo R.
      Asombrosa

      Good I’m very happy. I just hope they send me the title soon

      A
      Anthony C.

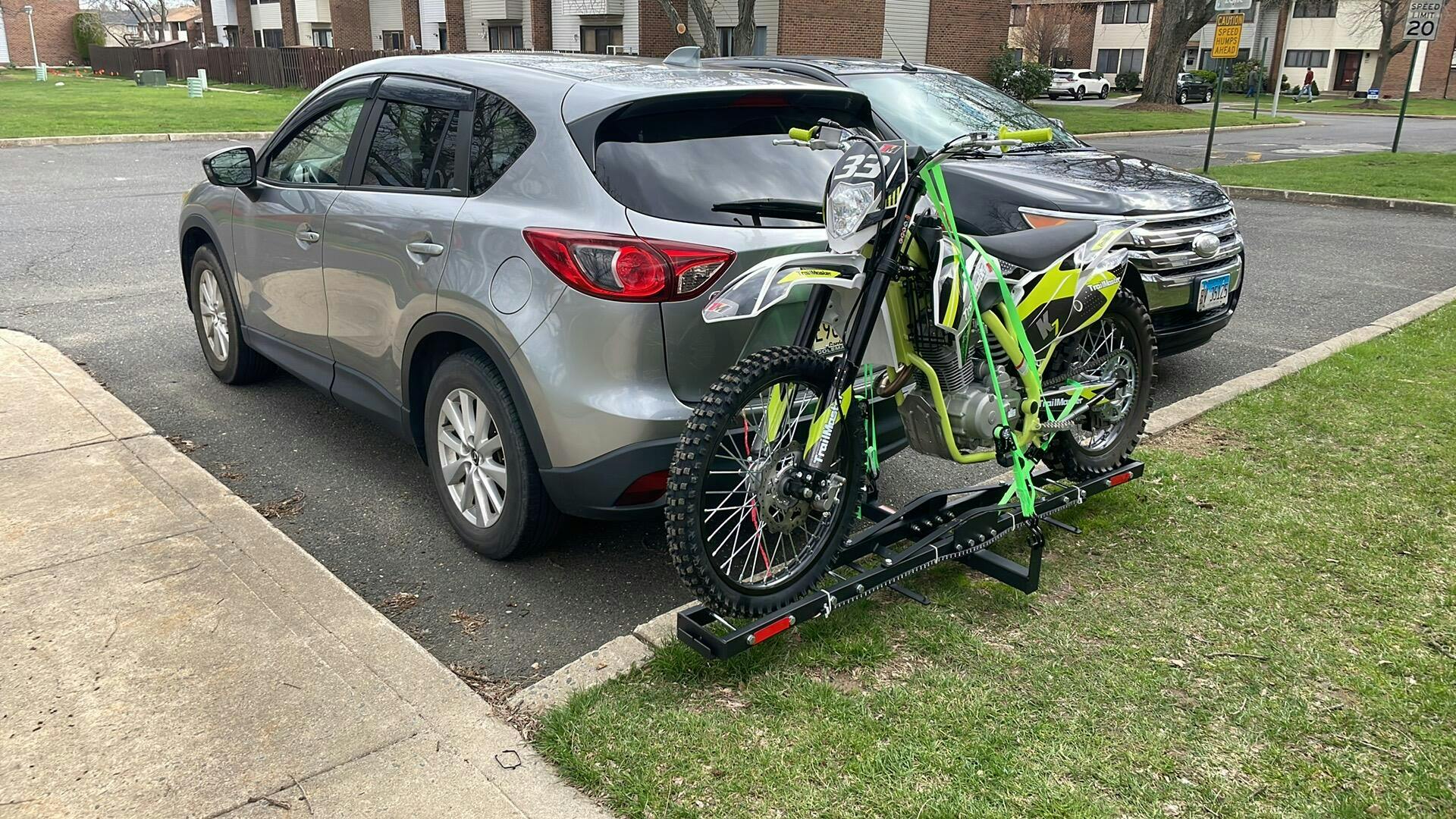

      Trail master tm33
